NeuropixelsV2e GUI

Note

The Neuropixels V2e Beta Headstage GUI functions identically to the Neuropixels V2e Headstage.

The NeuropixelsV2e headstage has a graphical user interface when the OpenEphys.Onix1.Design package is downloaded. For more information on how to install that library, check out the Installation page.

Overview

For HeadstageNeuropixelsV2e, the GUI allows for an easy way to change settings and visualize the effect. From the GUI, you can:

• Configure Probe A and Probe B independently
  • Change the reference for all electrodes
  • Choose pre-defined channel presets or manually define within a constrained set of possible combinations
  • Choose to invert the polarity of the data
  • Choose the probe type
    • Currently this library supports quad-shank and single-shank 2.0 probes
  • Choose and edit the ProbeInterface configuration file
    • Choose pre-defined channel presets or manually define within a constrained set of possible combinations
    • Easily visualize which electrodes are enabled
• Enable and disable the Bno055 stream

Opening the GUI

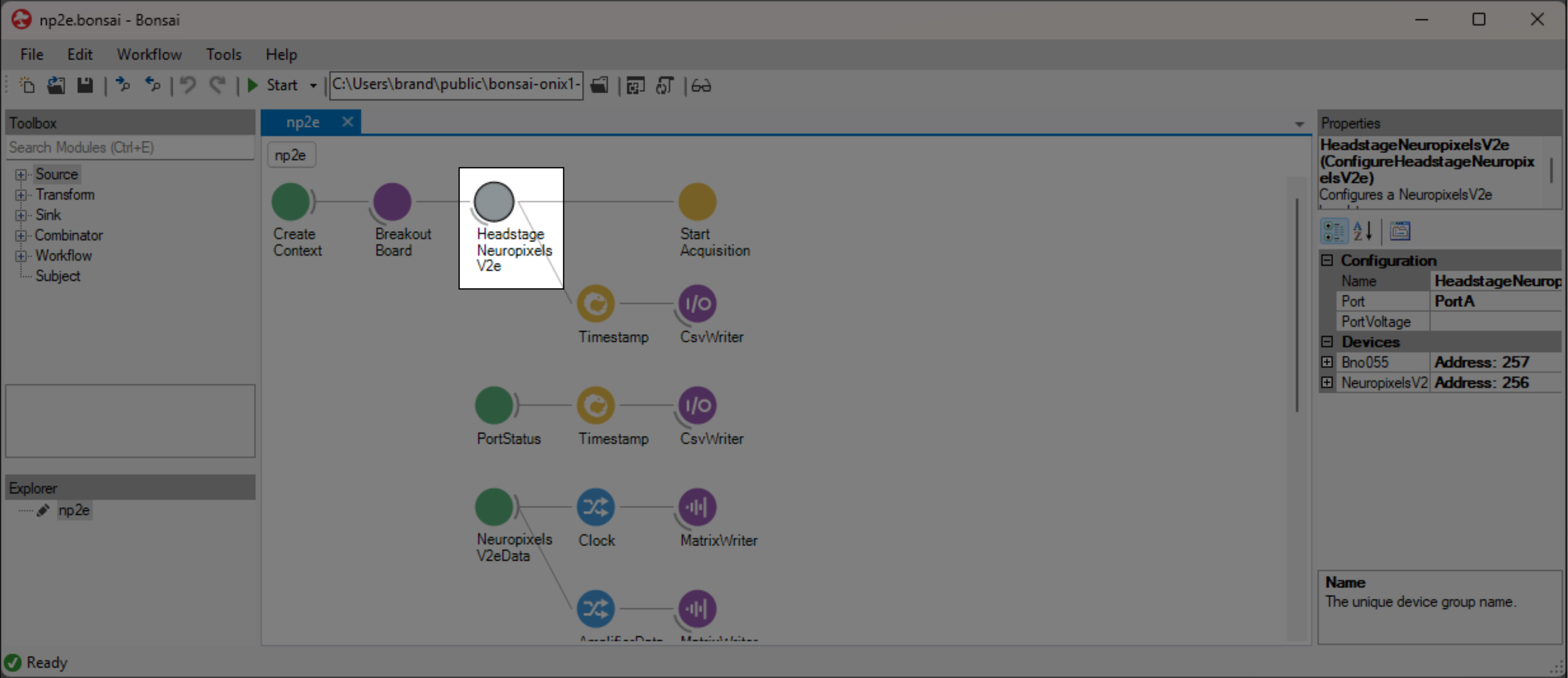

This configuration GUI can be accessed by double-clicking on the ConfigureHeadstageNeuropixelsV2e operator when the workflow is not running.

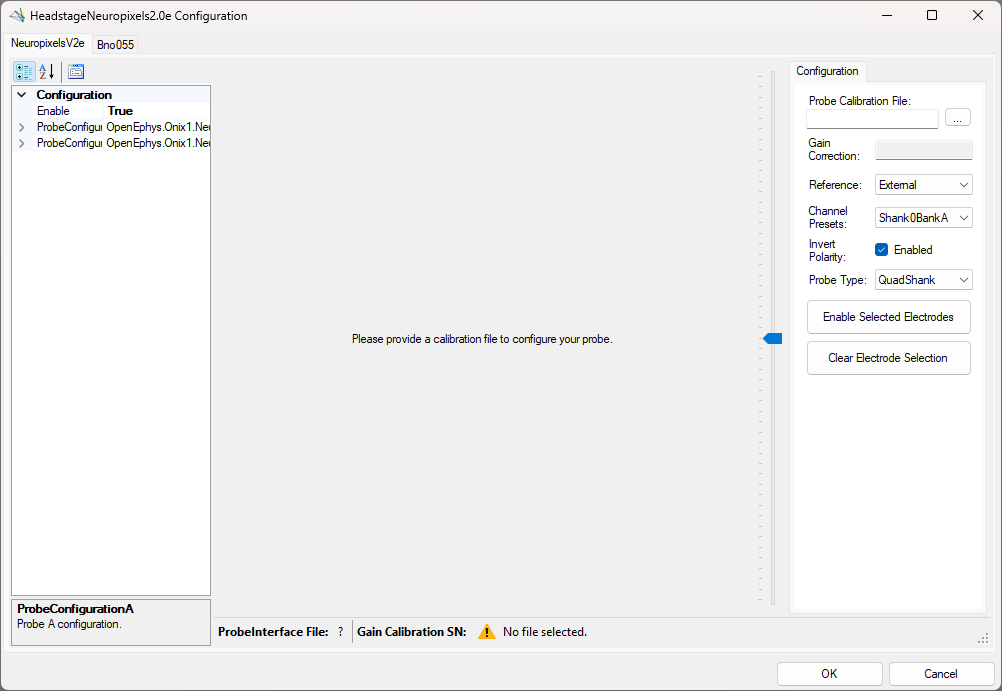

Once opened, if no probe calibration file has been selected the window should look like the image below. To view the probe, follow the steps below.

Channel constraints

For NeuropixelsV2e, there will always be 384 channels enabled across the entire probe. Therefore, when enabling electrodes (either manually or using channel presets), some previously enabled electrodes will be disabled. Additionally, if more than 384 electrodes are manually selected to be enabled, only the last 384 channels will end up being enabled. It is therefore recommended to always double-check that the correct electrodes are enabled.

As an example, let us assume that electrodes 0 through 383 are initially enabled (this corresponds to 384 channels). Then, electrodes 384 and 385 are enabled. When these electrodes are enabled, electrodes 0 and 1 will be disabled. In this way, there will always be 384 channels enabled.

In addition to the absolute number of channels, there are other restrictions in place regarding which combinations of electrodes can be enabled at any given time. Specifically, in the NeuropixelsV2Electrode there is a Channel property which defines the channel index of an electrode. Across the entire probe, no two electrodes that share the same Channel can be simultaneously enabled.

Channel presets take this into account automatically and ensure that the rules are followed. When manually enabling electrodes, the indexing logic is applied in the order that electrodes are selected. If two (or more) electrodes are selected that share a Channel value, the highest indexed electrode is the only one that will be enabled.

Note

Due to these constraints, some combinations of electrodes are not possible.

Keeping or discarding configuration settings

While the GUI is open, any changes to the configuration settings can be freely modified. Most changes will not be saved unless OK is pressed. This includes the chosen reference channel and probe calibration file. However, the electrode configuration as described below can be saved independently of the other configuration settings.

Note

The hardware is not actually configured until the workflow starts.

If the window is closed any other way (such as by pressing Cancel, or pressing the X to close the window), then any configuration changes made will not be saved.

ProbeInterface

The HeadstageNeuropixelsV2e GUI uses ProbeInterface as the format to save and draw the probes and electrodes visually. For more information on ProbeInterface and the resulting JSON file, check out their format specifications page.

When opening the GUI, there is a default probe configuration that is loaded and drawn, which can be saved to a JSON file. Conversely, an existing JSON file can be loaded to update the current channel configuration. If for any reason the default configuration is needed, it can be loaded again at any time.

Neuropixels V2 Probe Configuration

There are two ways to access the interface for each Neuropixels V2 probe:

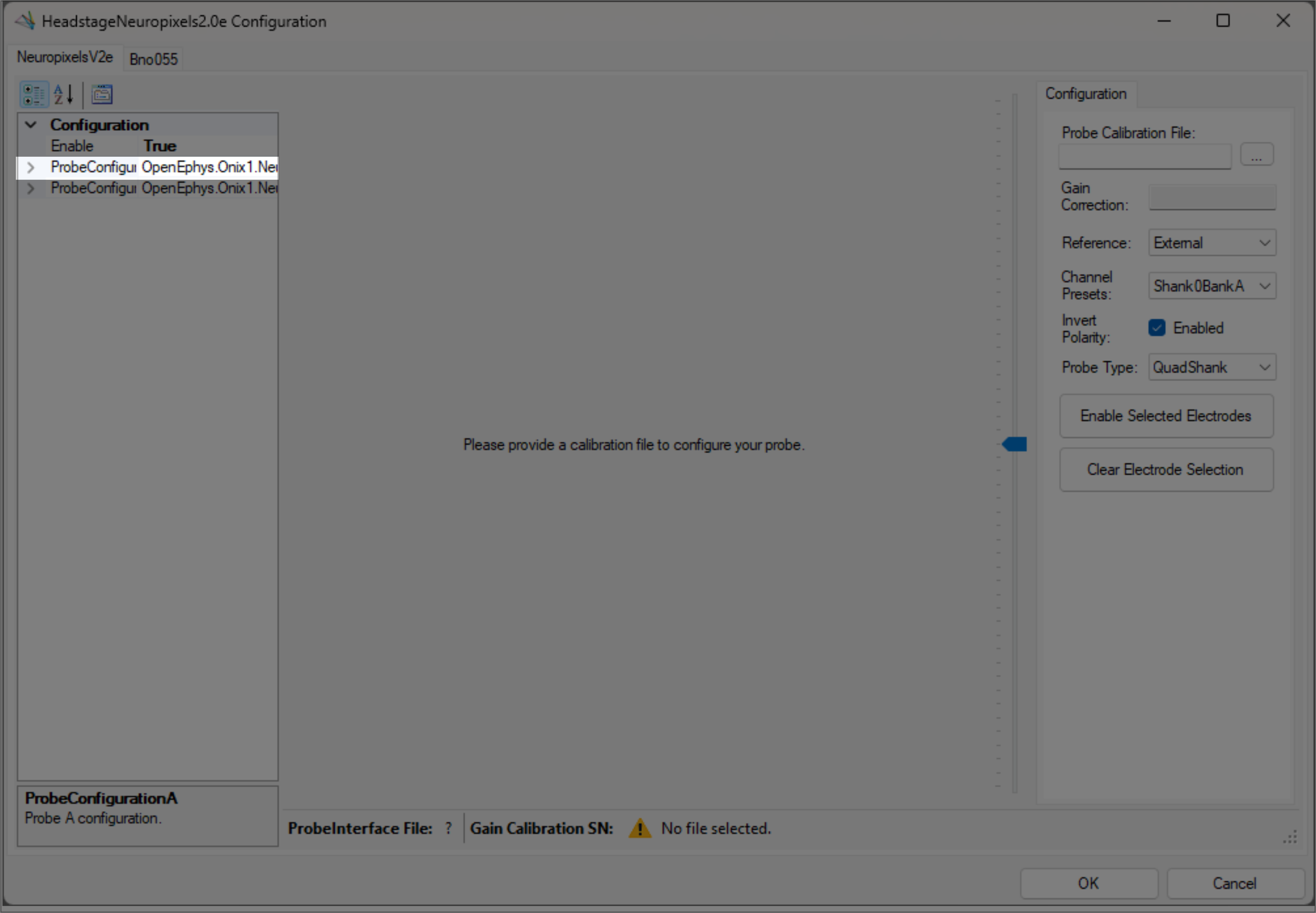

1. Click on the ProbeConfiguration[A|B] property on the left after opening the headstage GUI (see above). Note that this is the default property selected when the headstage GUI is opened. To view the electrode configuration of the other probe, click on the ProbeConfiguration property and the view of the electrodes in the middle will update.

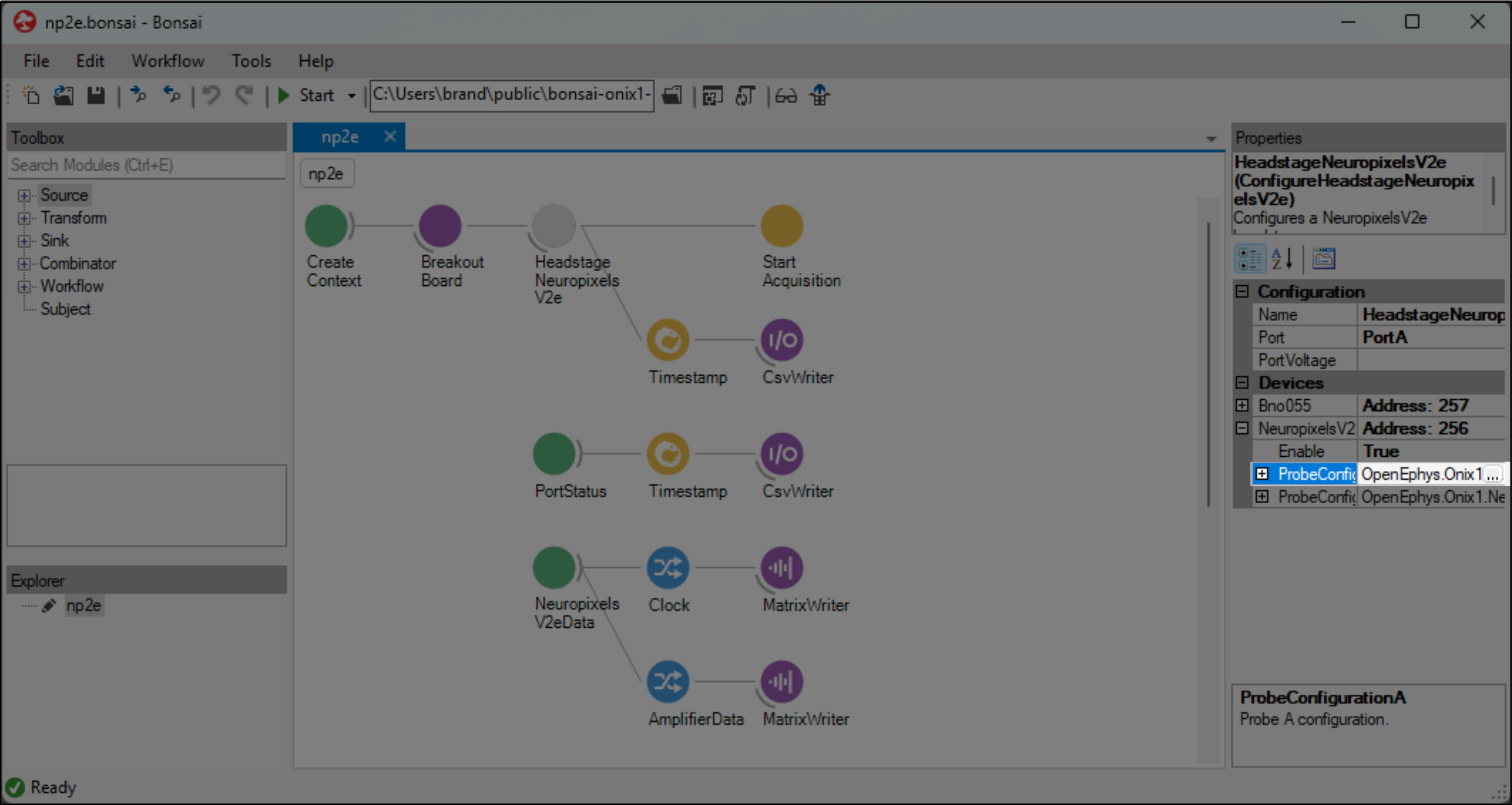

2. From the main Bonsai editor, select the ProbeConfigurationA property from the Devices category, and click on the ... button to the right of the name.

Whichever method is used to open the GUI, the descriptions below will be the same for both. However, if method 2 is used, other devices are not available from the same window; the Probe Configuration window must be closed so that another device (or the headstage) GUI can be opened. If any changes are made while the device-specific window is opened that you want to save, be sure to save the settings.

Choosing a probe calibration file

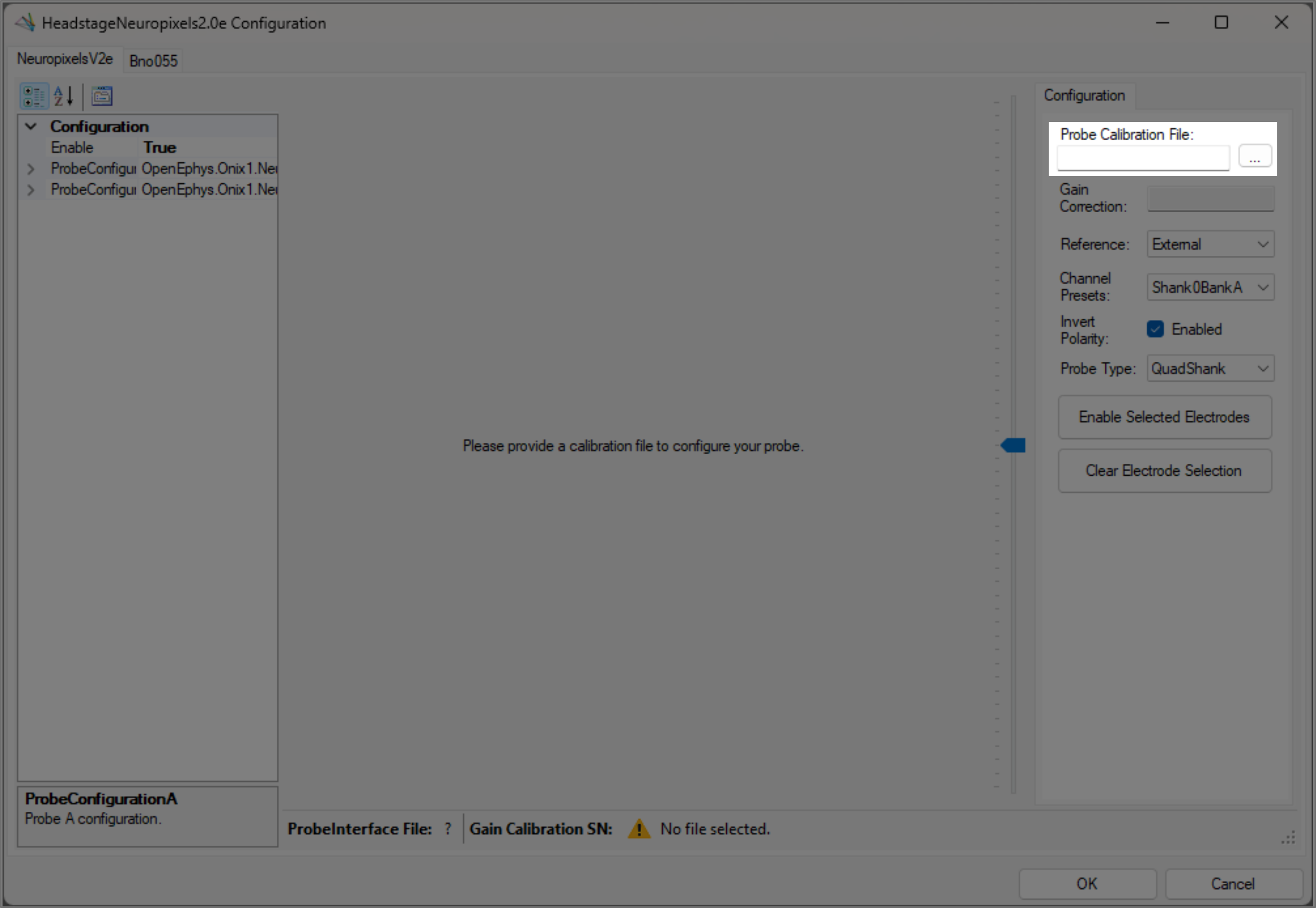

Upon opening the GUI for the first time, if no probe calibration file was set in the Bonsai editor, the window will be mostly blank. To populate the window with a drawing of the probe, click on the ellipsis button to the right of the empty text box under "Probe Calibration File:" (see below). This will open a file dialog, where the calibration file can be searched for and selected.

Note

Files are expected to be named XXXXXXXXXXX_gainCalValues.csv, where "XXXXXXXXXXX" is the probe serial number.

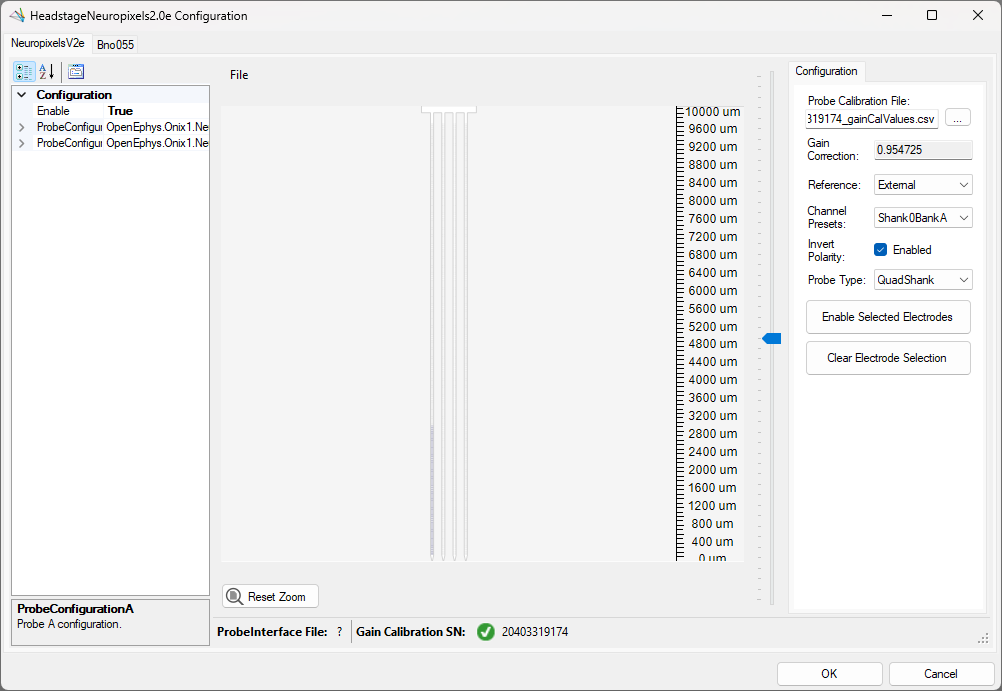

Once the file is selected, press Open or Enter. This will populate the text box with the filepath to the calibration file and enable visualization of the electrodes. Below is a view of the Probe Configuration GUI that has been opened for Probe A with a gain calibration file selected. Note that the Gain Correction textbox and the Gain Calibration SN: status strip are automatically filled in with values found in the calibration file.

Selecting channel reference

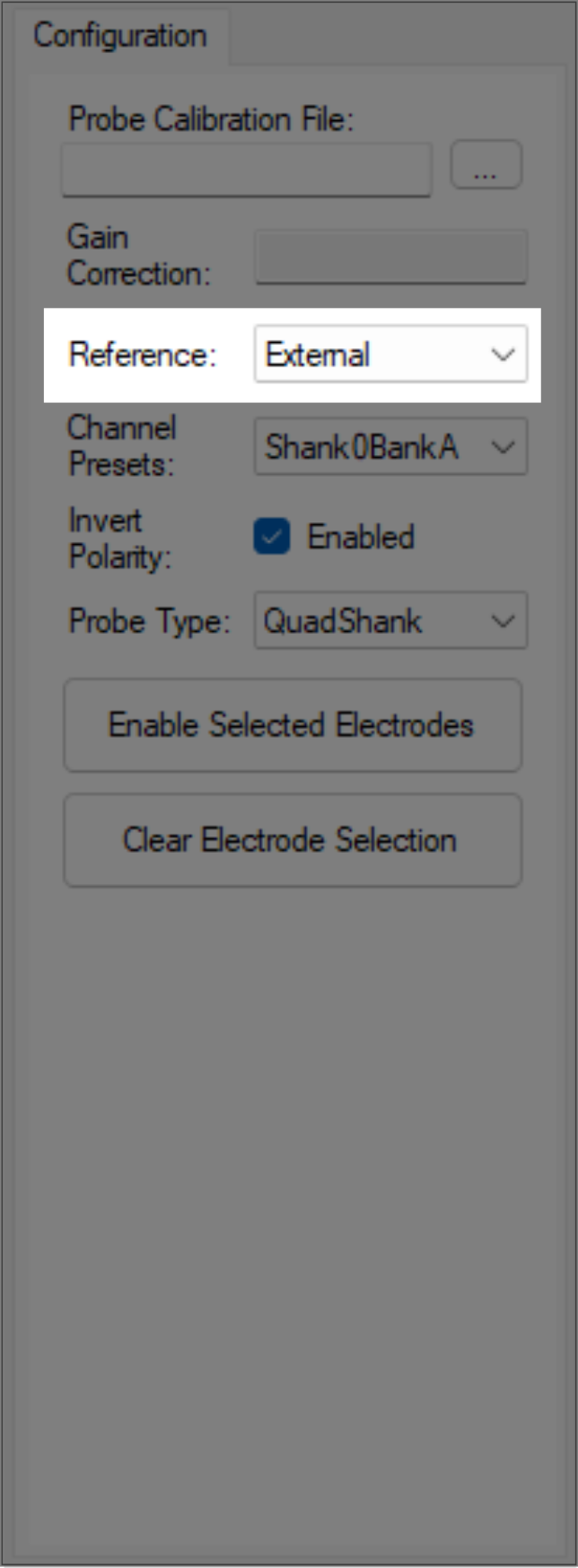

Underneath the probe calibration filepath, there is a dropdown menu for choosing the reference for all channels. For possible values and a brief description of what they correspond to, check out the reference page for quad-shank and single-shank probes.

Channel presets

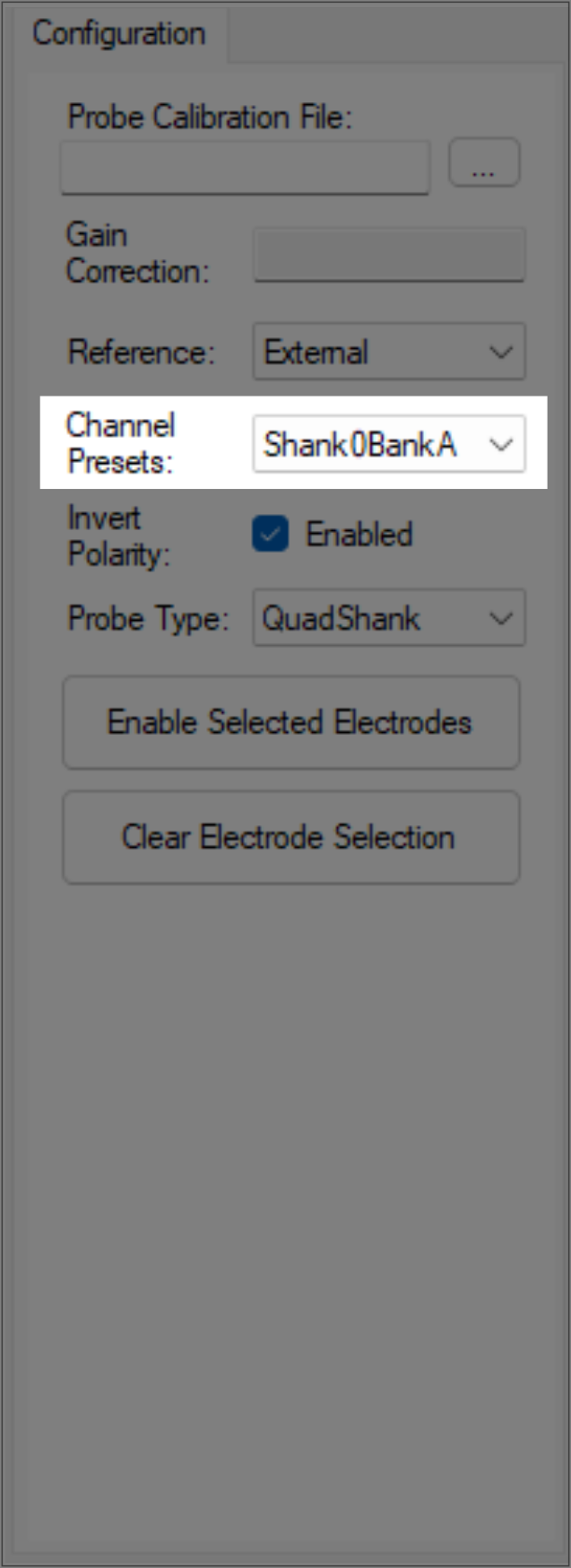

To save time, it is possible to select a preset channel combination from the Channel Presets dropdown. These presets are defined to work within the constraints of NeuropixelsV2e channel combinations defined above.

If electrodes are manually enabled, the Channel Presets dropdown will change to None, indicating that a channel preset is no longer selected.

Quad-shank probe presets:

• Shank N Bank [A | B | C | D]
  • Enables all electrodes in the chosen bank on shank N
  • To learn more about the banks along each shank, check out the NeuropixelsV2Bank page.
• All Shanks N_M
  • Enables all electrodes starting at shank index N up to shank index M across all four shanks

Single-shank probe presets:

• Bank [A | B | C | D]

Inverting the polarity of ephys data

A checkbox indicates whether the ephys data will be inverted or not. This option is enabled by default, as Neuropixels hardware inverts neural data; therefore, leaving this option enabled will invert the data again, matching the data recorded by the Open Ephys GUI or other hardware sources.

Selecting probe type

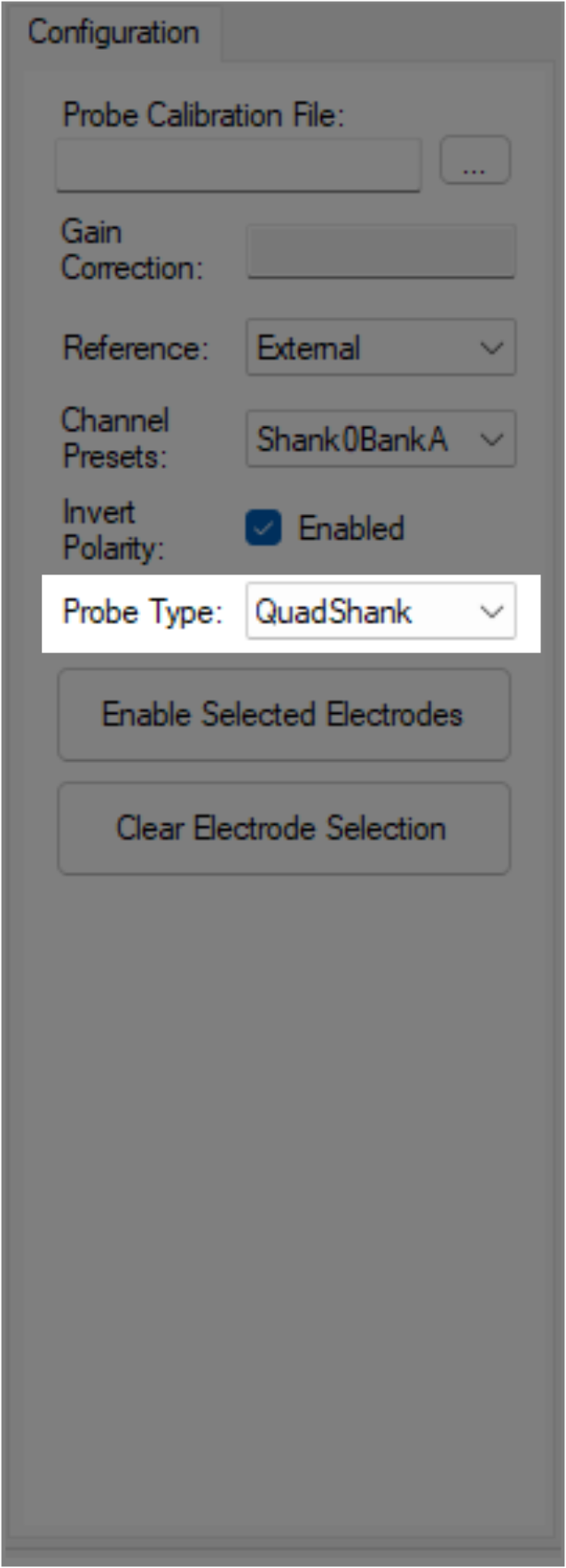

A dropdown menu allows you choose between a quad-shank probe, and a single-shank probe.

Note

Switching to a new probe type will reset the calibration file, reference, electrode selection, and invert polarity option. The selections are not discarded immediately, and can be retrieved by selecting the previous probe type. However, if the probe type is changed, and then the GUI is closed by pressing OK, all previous probe group settings will be lost.

Maneuvering along the probe

Once a GUI has been opened and a probe calibration file has been selected, the main panel on the left will be populated with a NeuropixelsV2e probe. Below are the buttons used to navigate within this panel to view and choose electrodes.

• Mouse Controls
  • Mouse wheel zooms in/out towards the cursor
  • Left-click and drag will select electrodes within the drawn rectangle
  • Left-click on an electrode will select that electrode
  • Left-click in empty space will clear the selected electrodes
  • Middle-click and drag will pan the electrodes
• Scroll bar
  • On the right side of the main panel there is a scroll bar that can be used to move the probe up and down
  • Panning the probe up or down will update the scroll bar once the movement has completed
  • The scroll bar can be moved by:
    • Grabbing the marker using the mouse and dragging it up or down
    • Placing the cursor either above or below the marker and clicking
    • Using the mouse wheel to scroll up or down while the cursor is over the scroll bar

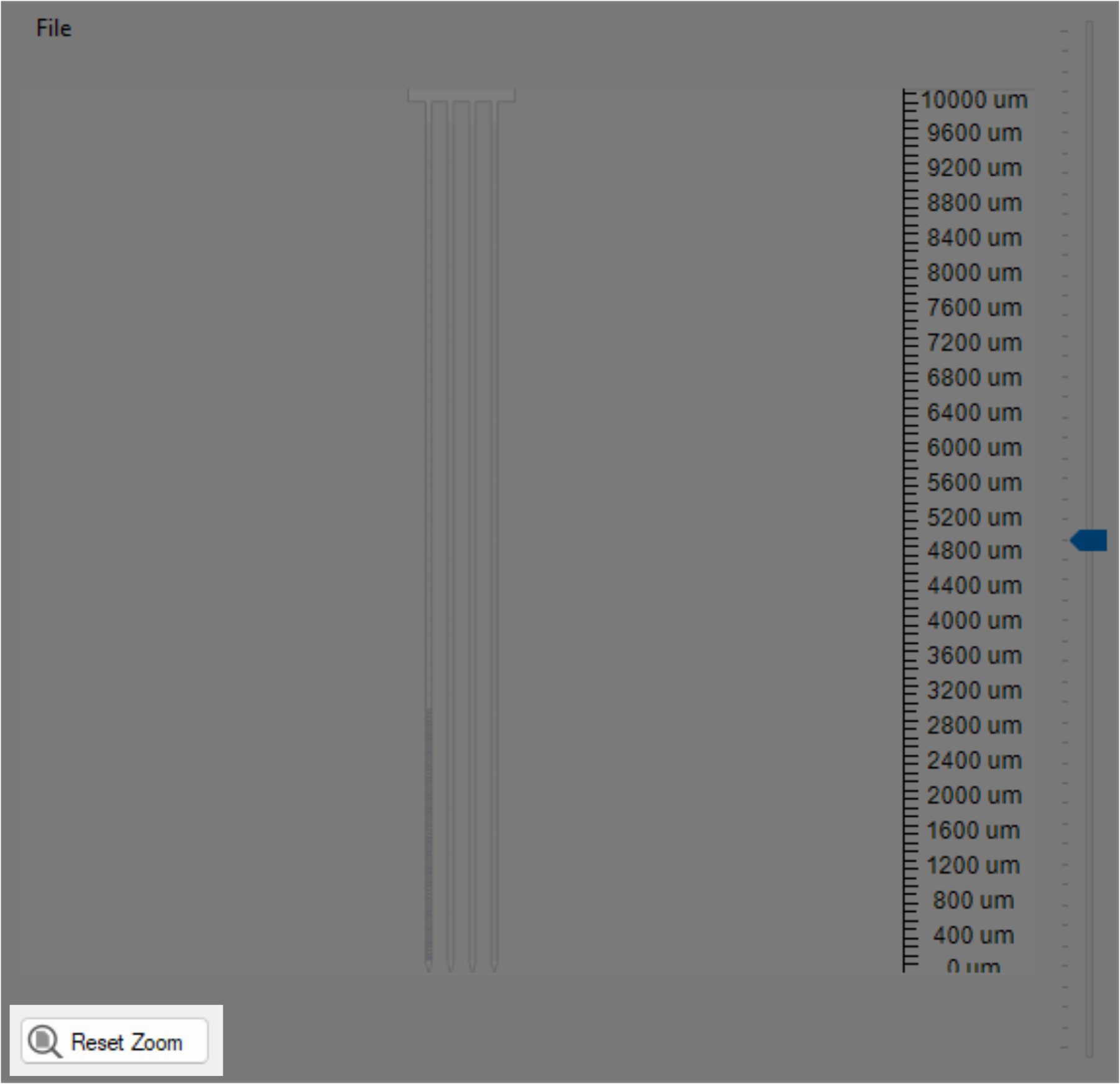

Reset zoom

When zooming in and out, there are limits in both directions. The probe can only be zoomed out to the point that the entire probe is visible within the panel, and similarly the probe will not zoom in past a certain point.

There are no restrictions when panning the probe, meaning that it is possible to move the probe to where it is out of view, and difficult to find. To reset the view at any time, click on the Reset Zoom button to fully zoom out the panel.

Manually enabling electrodes

Electrodes can be selected at any zoom level, but it is often preferable to zoom in to read the electrode indices. Consider maximizing the screen to see those numbers more easily.

To select, as described above, either click-and-drag the cursor over the desired electrodes, or select individual electrodes by clicking on them one-by-one. Once the electrodes to enable are selected, click on the Enable Selected Electrodes button in the right panel. At this point the selected electrodes should turn blue, indicating that they are now enabled. It is important to note that when electrodes are enabled, a number of previously enabled electrodes will be disabled due to channel constraints. For more information, read the Channel constraints section above.

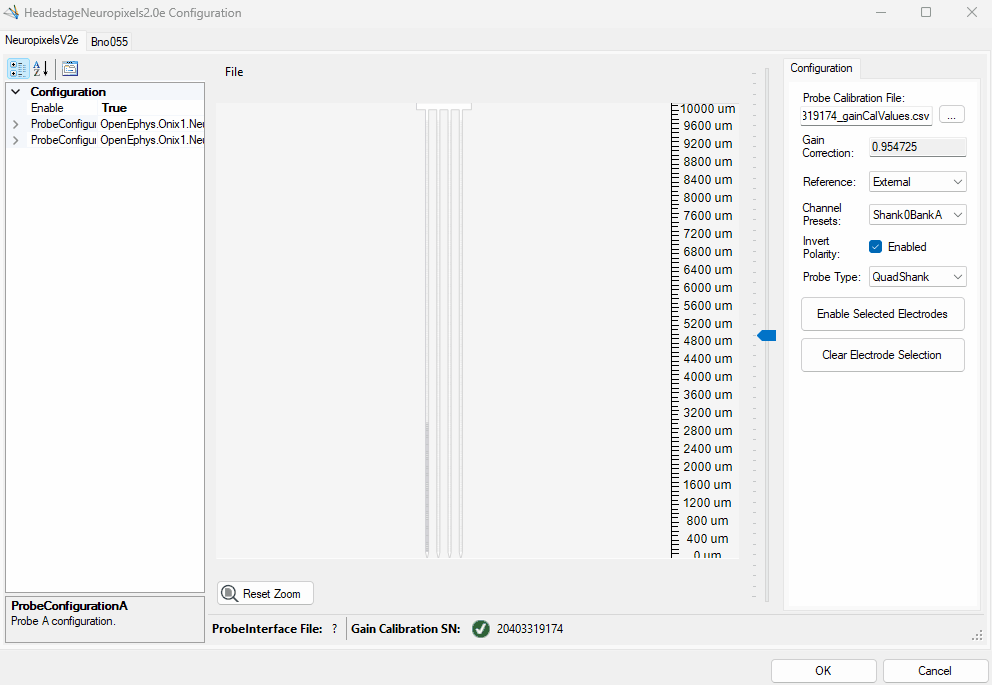

The short video below shows how to select, clear selection, enable selected electrodes, and translate using the scroll bar. Note that once electrodes are manually enabled, the Channel Presets drop-down changes to None. Then, once the selected electrodes match the preset, it is automatically changed back to Shank0BankA.

Loading and saving channel configurations

When the GUI is first opened and after a probe calibration file has been specified, the default ProbeInterface configuration is loaded and drawn in the main panel. In this case, the default configuration is for a quad-shank Neuropixels 2.0 probe, with the Shank0BankA channel preset selected. To load a new configuration, load the default configuration, or save the current configuration, go to the File drop-down menu (see below) and choose the relevant option.

Load ProbeInterface file

To open a file, navigate to the file menu option File → Open or press Ctrl + O. This will open a file dialog window; browse to the existing JSON file, select it and press Open to view the channel configuration. The new probe will be loaded and drawn, with the enabled electrodes highlighted.

The ProbeInterface File section of the status bar will update to display the filename that was selected. To view the entire filepath for the file, hover over the filename to display a tooltip with the entire filepath.

Save ProbeInterface file

Whenever changes are made to the ProbeInterface configuration, an asterisk will appear on the tab or title of the window to indicate that some changes to the electrode configuration are unsaved. To save the file, go to the file menu option File → Save or press Ctrl + S.

• If there is not a filename already selected, this will open a file dialog window to save a new file. Choose a folder location and a name for the file, then hit Save.
• If a filename is already selected, then the file will be immediately saved to the current filepath, overwriting the channel configuration.
  • If you do not want to overwrite the channel configuration, you can instead use File → Save As or Ctrl + Shift + S to save the current electrode configuration to a new filepath.

If there are unsaved changes to the electrode configuration, pressing Cancel will discard all unsaved changes. If the electrode configuration is first saved to a file, and then Cancel is pressed, the changes are still saved in the file; however, other probe configuration properties such as the ProbeInterface file name or the reference used, will be discarded. When OK is pressed and there are unsaved changes, a prompt will appear confirming if you would like to save, save as, or cancel closing the dialog.

Import configuration

Instead of opening a file and updating the ProbeInterface filename, you can instead choose to import another configuration by going to File → Import Configuration. This will open up a Load File dialog, where you can select an existing ProbeInterface file that will be imported without modifying the current filename.

Load default configuration

To load the default channel configuration at any time, navigate to the drop-down menu and choose File → Load Default Configuration. This will load the default configuration, with the Shank0BankA channel preset selected.

Configure Bno055

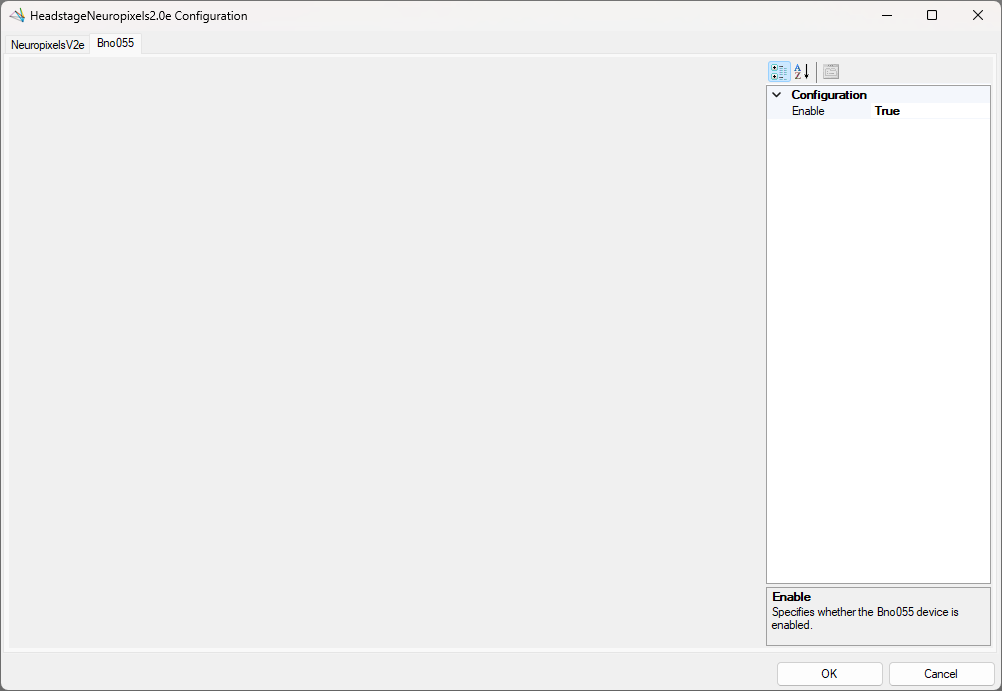

At the headstage level, there is another device tab listed for a Bno055. From this tab, the device can be enabled or disabled by selecting the appropriate value from the drop-down menu next to Enable. While the DeviceAddress and DeviceName values are modifiable here, they have no affect on the underlying device configuration; only changes to the Enable property will be respected.
