NanoZ Adapter for 64ch Hirose EIB#

../_images/OEPS-6820.jpg — OEPS-6820#

Connector	1x Hirose DF40C-70DP-0.4V(51)
Source Repo	open-ephys/eib-64-nanoz-adapter
Revision	1.0
Compatible EIB	ShuttleDrive 64ch Hirose EIB

ShuttleDrive 64ch Hirose EIB#

../_images/OEPS-6820_OEPS-6813_mounting.jpg — EIB combination mounting#

../_images/OEPS-6820_connector_map.jpg — EIB combination channel map on Nanoz GUI#

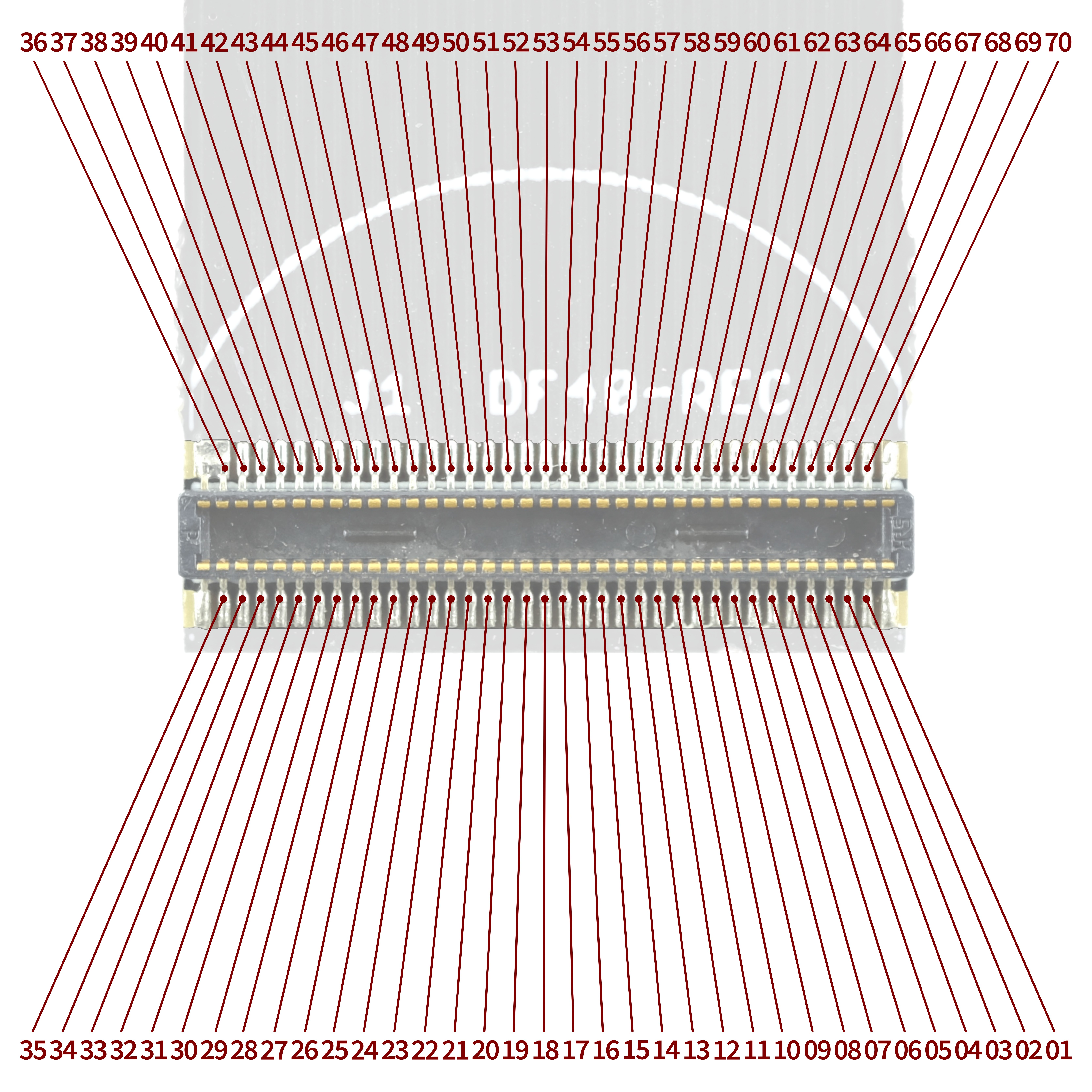

../_images/OEPS-6820_connector_pinout.jpg — Connector pinout (headstage side)#
