ShuttleDrive 64ch Hirose EIB#

../_images/OEPS-6813.jpg

OEPS-6813#

Dimensions

15.9 mm diameter, 2.72 mm tall

Mass

0.55 g

Gold pin vias

Small: 0.3 mm

Additional features

Three holes for 1.3 mm fiber optic ferrules or screws

Connector

1x Hirose DF40C-70DP-0.4V(51)

Source Repo

open-ephys/eib-64

Revision

1.3

Compatible Headstages

ONIX Headstage Ephys 64ch, SPI Headstage 64ch Low Profile, SPI Headstage 64ch Low Profile with 3D
../_images/OEPS-6813_connector_pinout.jpg

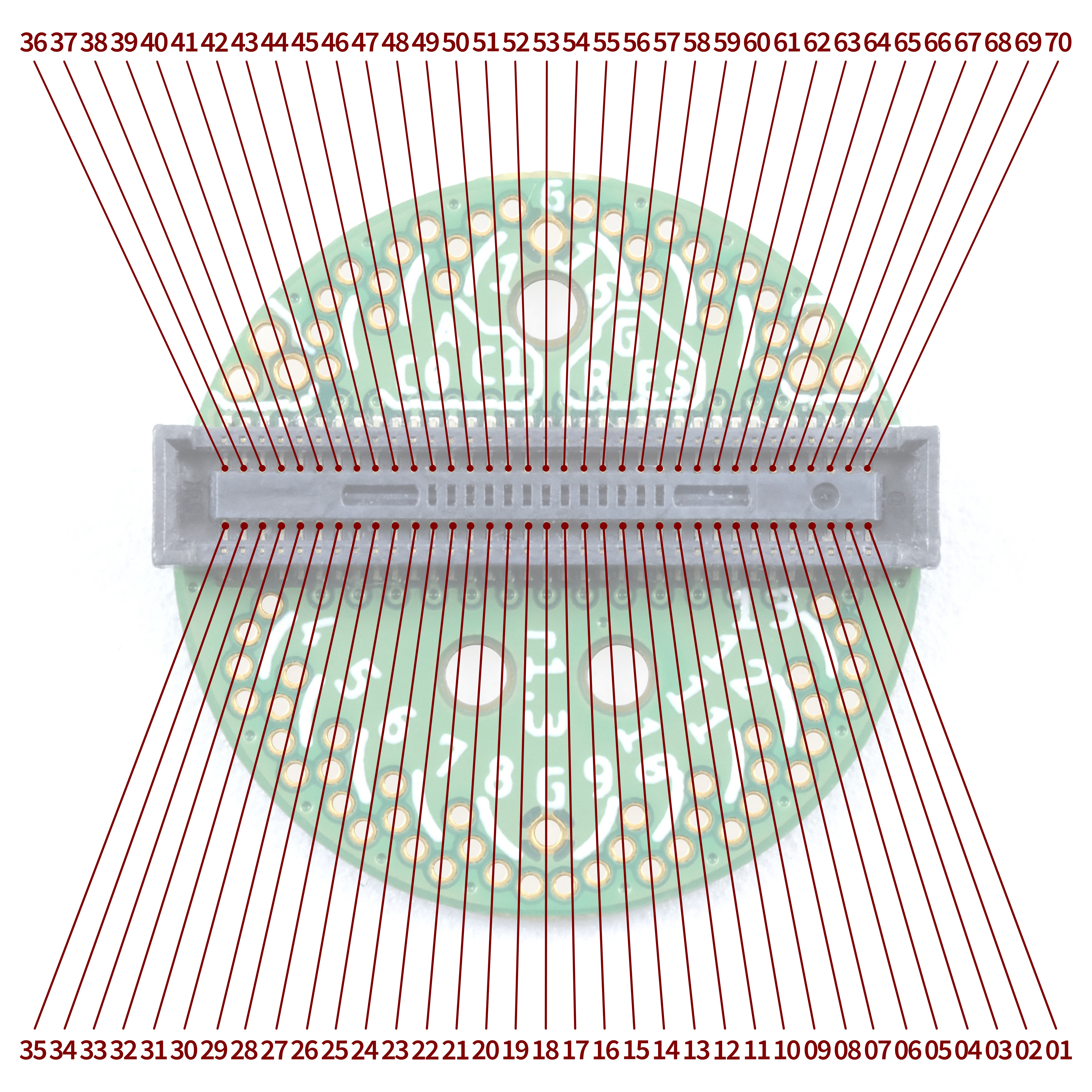

Connector pinout (pins)#

../_images/OEPS-6813_connector_map.jpg

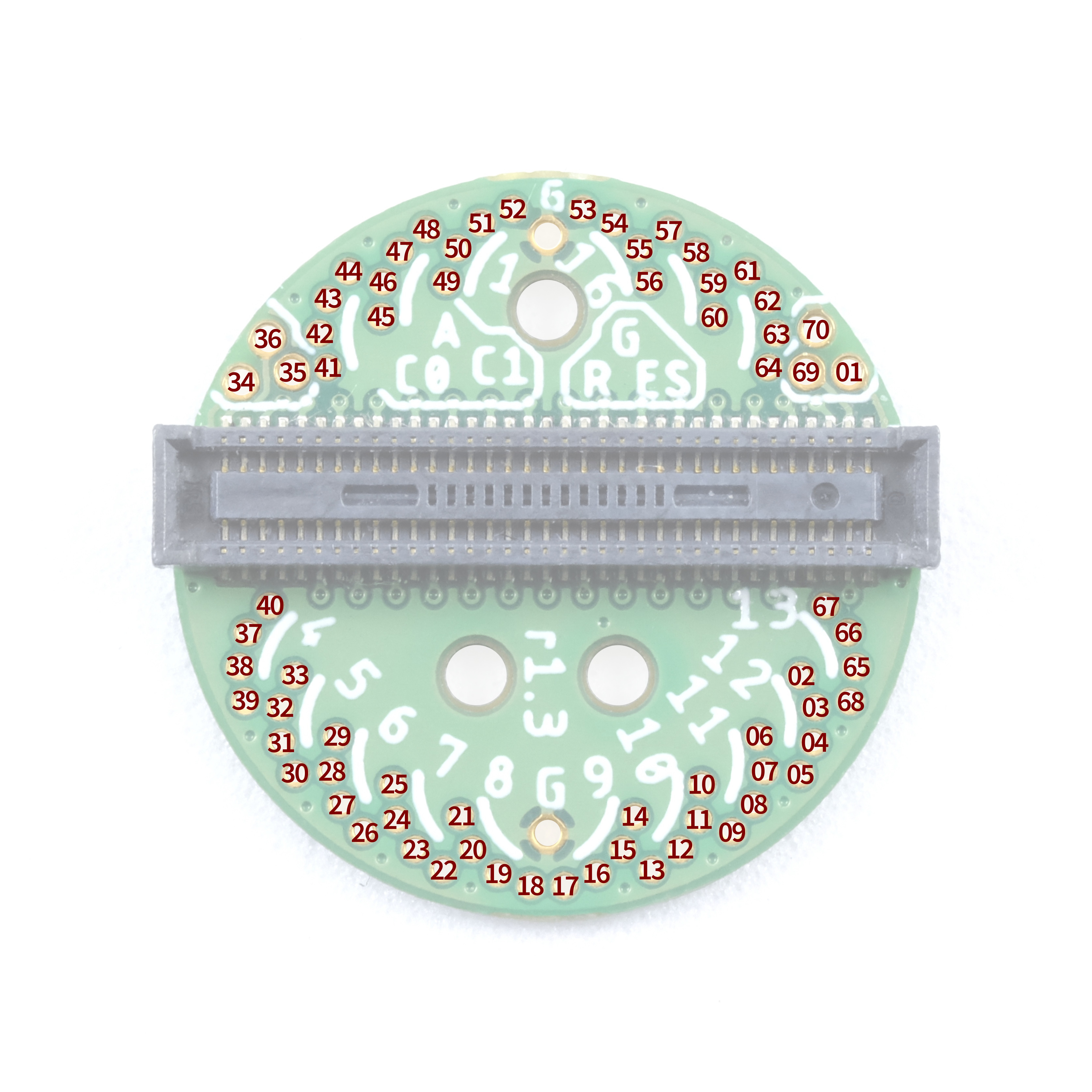

Connector pinout (vias)#

Compatible Headstages#

  • ONIX Headstage Ephys 64ch (OEPS-7741)

  • Low-profile SPI Headstage 64ch (OEPS-6570)

  • Low-profile SPI Headstage 64ch with 3D (OEPS-6571)
