Adapter Hirose to Omnetics 64ch#

../_images/OEPS-7200.jpg

OEPS-7200#

Dimensions

19 mm, 9.13 mm, 8.35 mm tall

Mass

1.03 g

Additional vias

A, C0, C1 and ES

Connector

2x 36-pin Omnetics A79025, placed at a distance of 0.914 mm (between both inner walls of the omnetics connectors)

Source Repo

open-ephys/adapter-hirose-omnetics-64

Revision

1.0

Compatible Headstages

ONIX Headstage Ephys 64ch, SPI Headstage 64ch Low Profile, SPI Headstage 64ch Low Profile with 3D

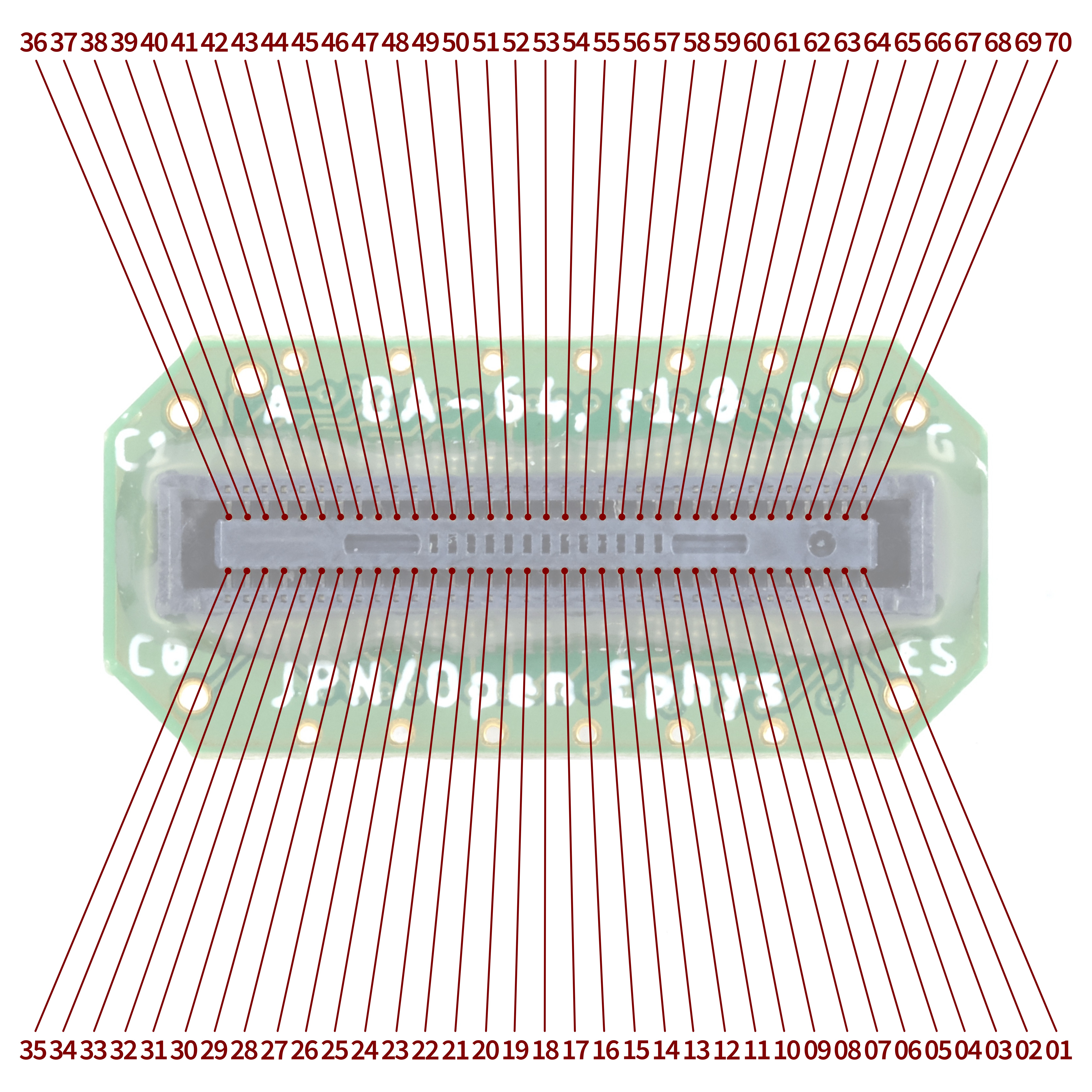

../_images/OEPS-7200_connector_pinout.jpg

Connector pinout (headstage side)#

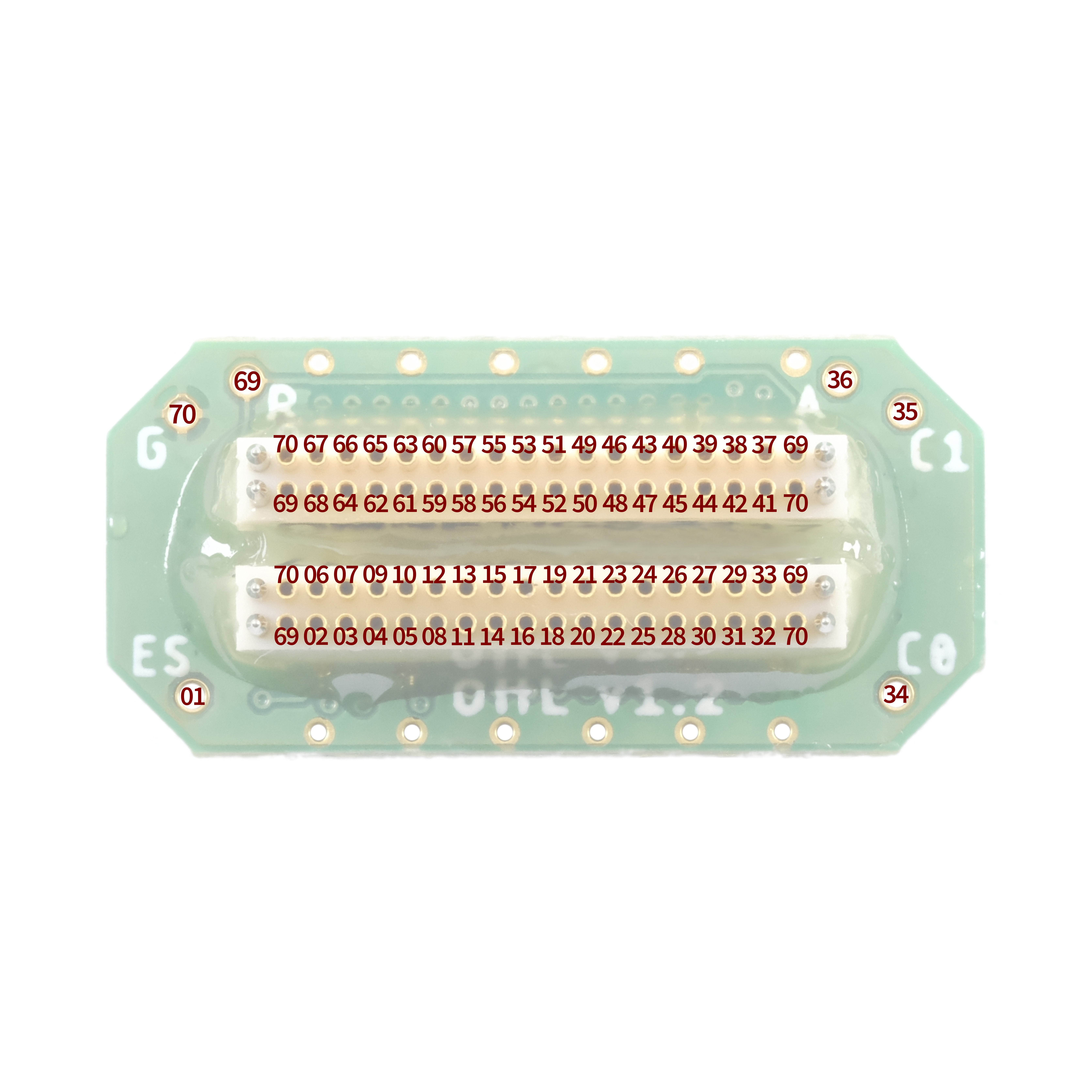

../_images/OEPS-7200_connector_map.jpg

Connector pinout (probe side)#

Compatible Headstages#

  • ONIX Headstage Ephys 64ch (OEPS-7741)

  • Low-profile SPI Headstage 64ch (OEPS-6570)

  • Low-profile SPI Headstage 64ch with 3D (OEPS-6571)
