Adapter Hirose to Omnetics 32ch#

../_images/OEPS-7201.jpg

OEPS-7201#

Dimensions

19 mm , 9.13 mm, 8.35 mm tall

Mass

0.80 g

Connector

1x 36-pin Omnetics A79025

Source Repo

open-ephys/adapter-hirose-omnetics-64

Revision

1.0

Compatible Headstages

ONIX Headstage Ephys 64ch, SPI Headstage 64ch Low Profile, SPI Headstage 64ch Low Profile with 3D
../_images/OEPS-7201_connector_pinout.jpg

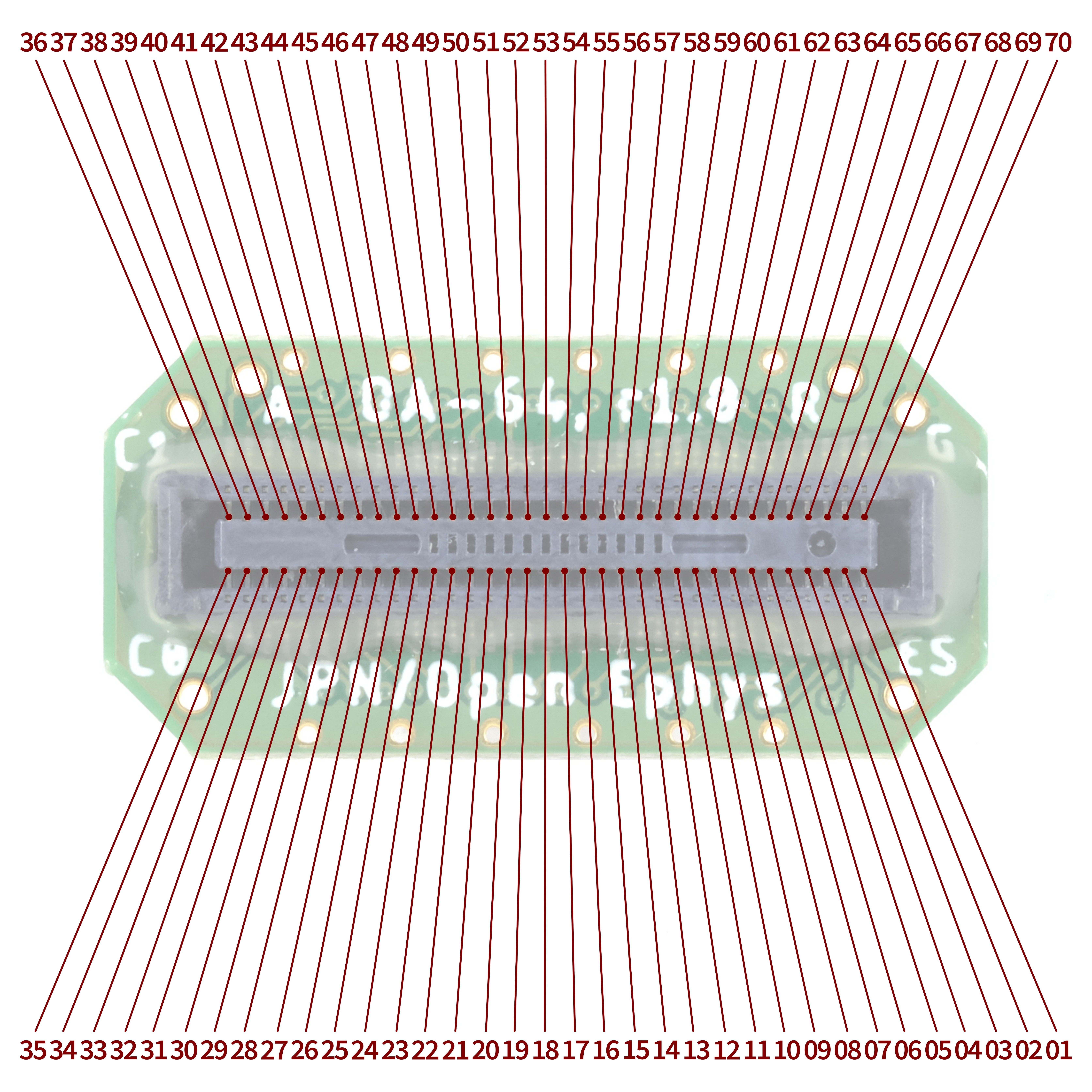

Connector pinout (headstage side)#

../_images/OEPS-7201_connector_map.jpg

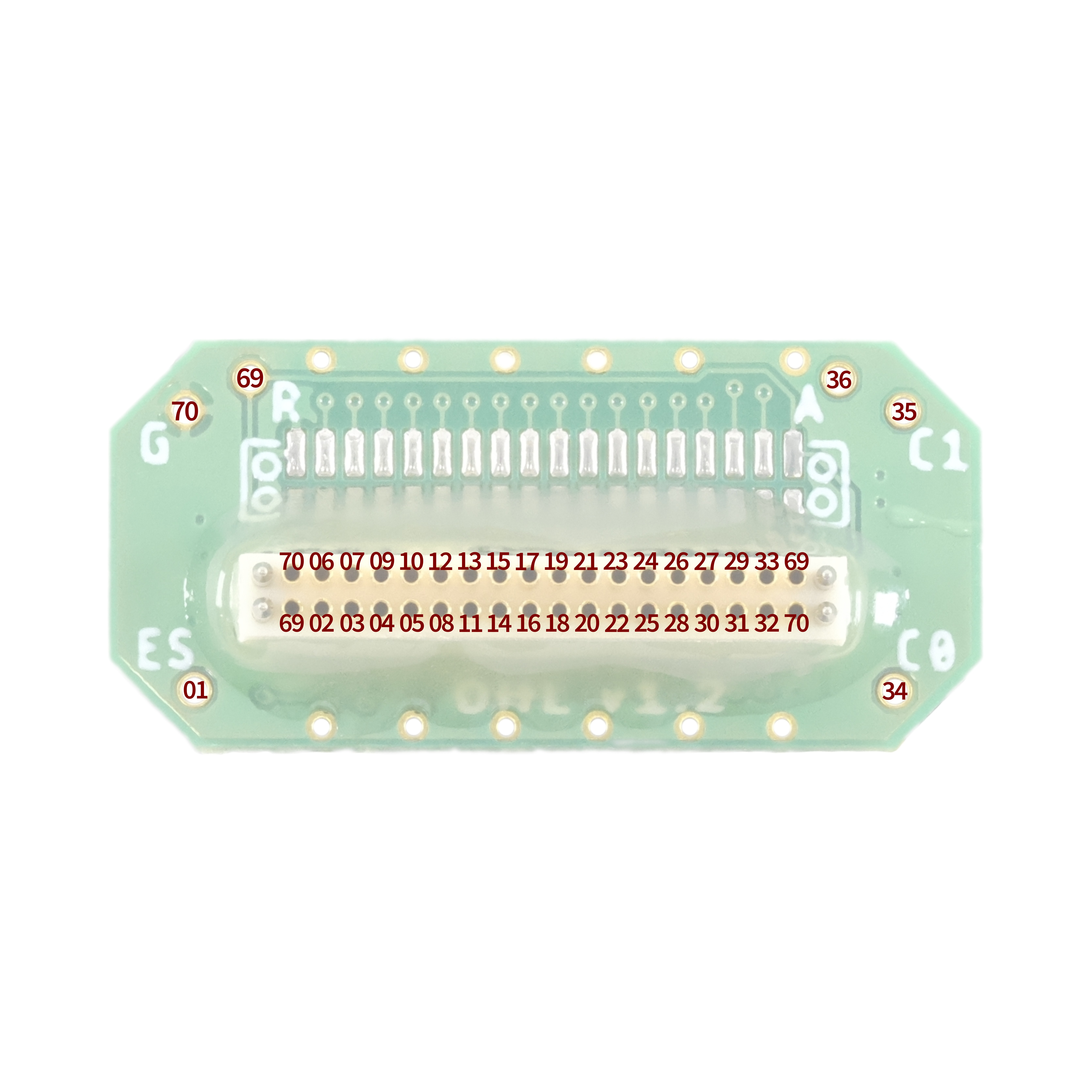

Connector pinout (probe side)#

Compatible Headstages#

  • ONIX Headstage Ephys 64ch (OEPS-7741)

  • Low-profile SPI Headstage 64ch (OEPS-6570)

  • Low-profile SPI Headstage 64ch with 3D (OEPS-6571)
