ShuttleDrive 64ch Omnetics EIB#

../_images/OEPS-6810.jpg

OEPS-6810#

Dimensions

15.9 mm diameter, 5.8 mm tall

Mass

0.69 g

Gold pin vias

Small: 0.3 mm

Additional features

One hole for 0.70 mm fiber optic ferrule

Connector

2x 36-pin Omnetics A79026-001, placed at a distance of 0.914 mm (between both inner walls of the omnetics connectors)

Source Repo

open-ephys/shuttle-drive

Revision

1.0

Compatible Headstages

Intan RHD 64ch Recording Headstage
../_images/OEPS-6810_connector_pinout.jpg

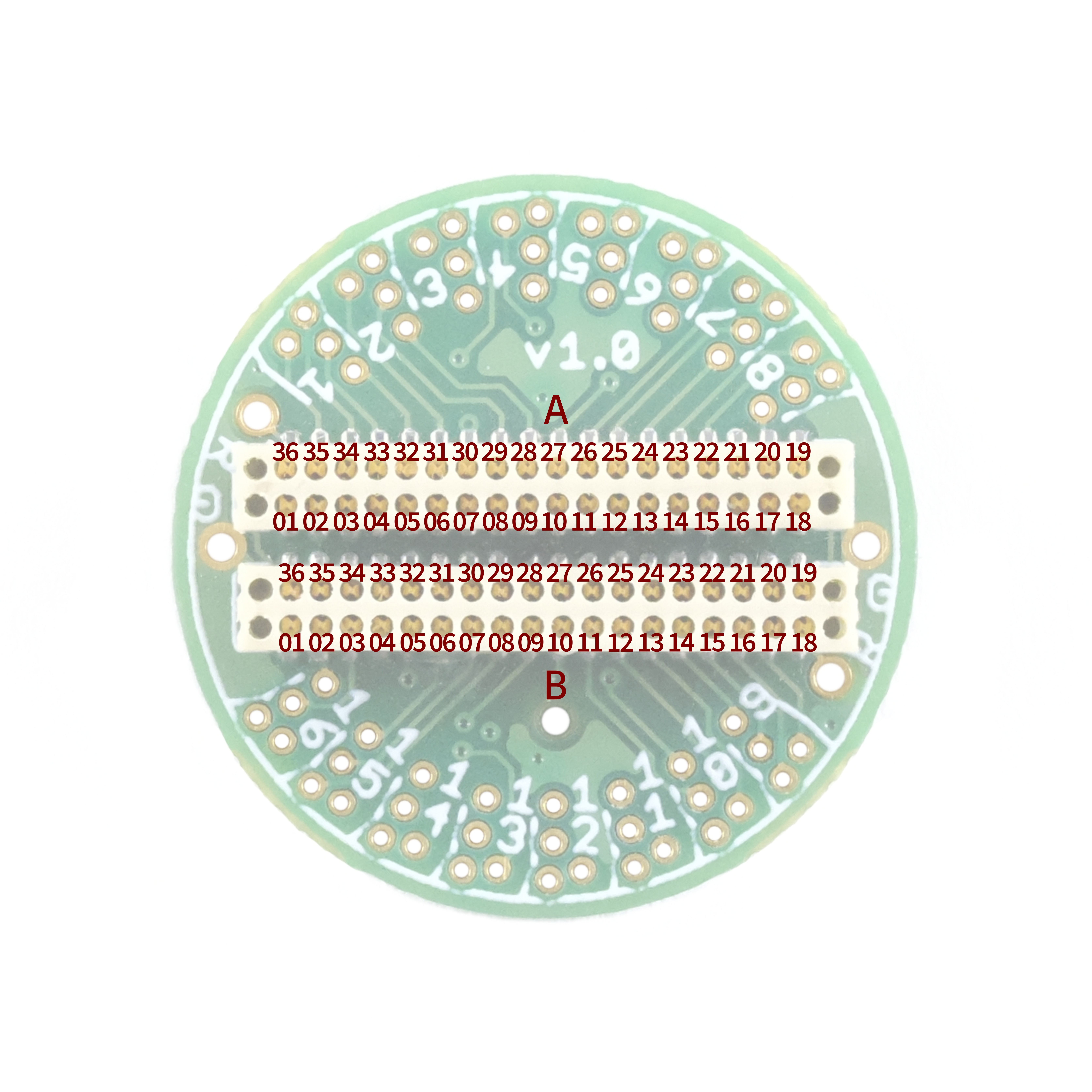

Connector pinout (pins)#

../_images/OEPS-6810_connector_map.jpg

Connector pinout (vias)#

Compatible Headstages#

  • Intan RHD 64ch Recording Headstage (#C3315, #C3325)
