FlexDrive 64ch Omnetics EIB#

../_images/OEPS-6805.jpg

OEPS-6805#

Dimensions

21.3 mm diameter, 5.7 mm tall

Mass

0.88 g

Gold pin vias

Large: 0.5 mm

Additional features

Three holes for 1.25 mm fiber optic ferrule

Connector

2x 36-pin Omnetics A79026-001, placed at a distance of ~3 mm

Source Repo

open-ephys/shuttle-drive

Revision

1.3

Compatible Headstages

SPI Headstage 32ch, SPI Headstage 32ch with 3D, ONIX Headstage 32ch Stim/Record

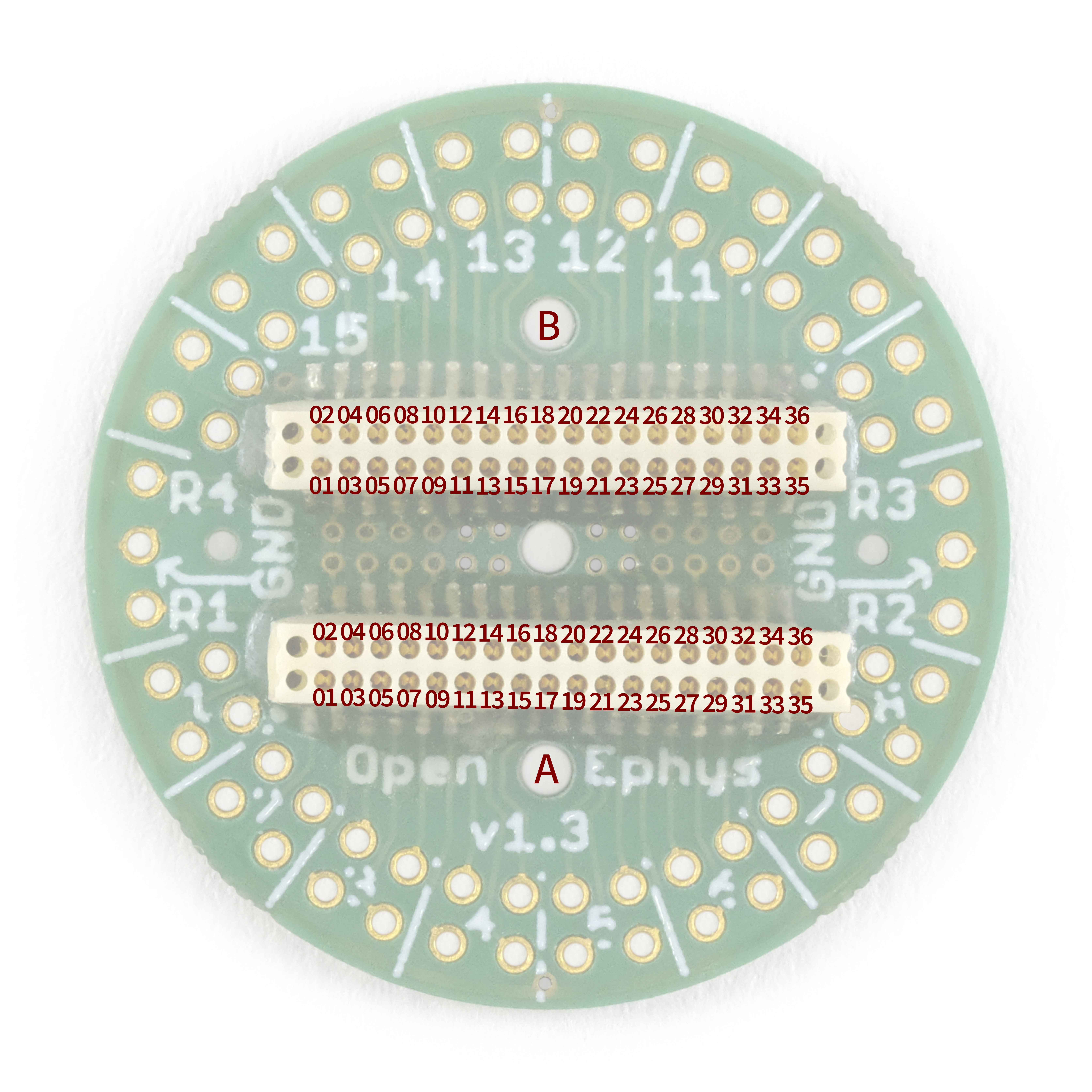

../_images/OEPS-6805_connector_pinout.jpg

Connector pinout (pins)#

../_images/OEPS-6805_connector_map.jpg

Connector pinout (vias)#

Compatible Headstages#

  • SPI Headstage 32ch (OEPS-6573)

  • SPI Headstage 32ch with 3D (OEPS-6576)

  • ONIX Headstage 32ch Stim/Record (OEPS-7746)
