ShuttleDrive 32ch Omnetics EIB#

../_images/OEPS-6809.jpg

OEPS-6809#

Dimensions

15.9 mm diameter, 5.8 mm tall

Mass

0.59 g

Gold pin vias

Large: 0.5 mm

Additional features

Two holes for 1.25 mm fiber optic ferrules, and two holes for screws

Connector

1x 36-pin Omnetics A79026

Source Repo

open-ephys/shuttle-drive

Revision

1.4

Compatible Headstages

SPI Headstage 32ch, SPI Headstage 32ch with 3D, ONIX Headstage 32ch Stim/Record
../_images/OEPS-6809_connector_pinout.jpg

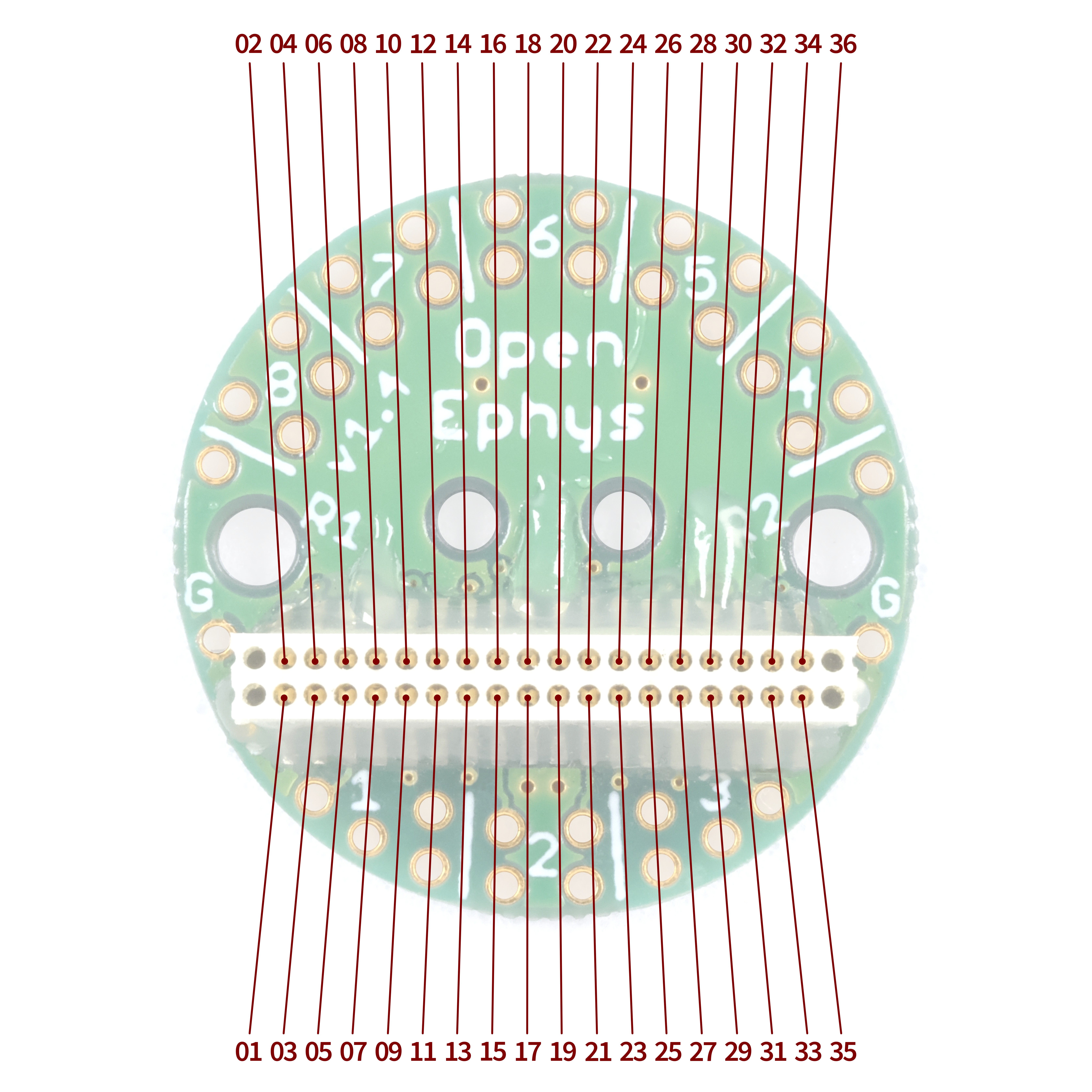

Connector pinout (pins)#

../_images/OEPS-6809_connector_map.jpg

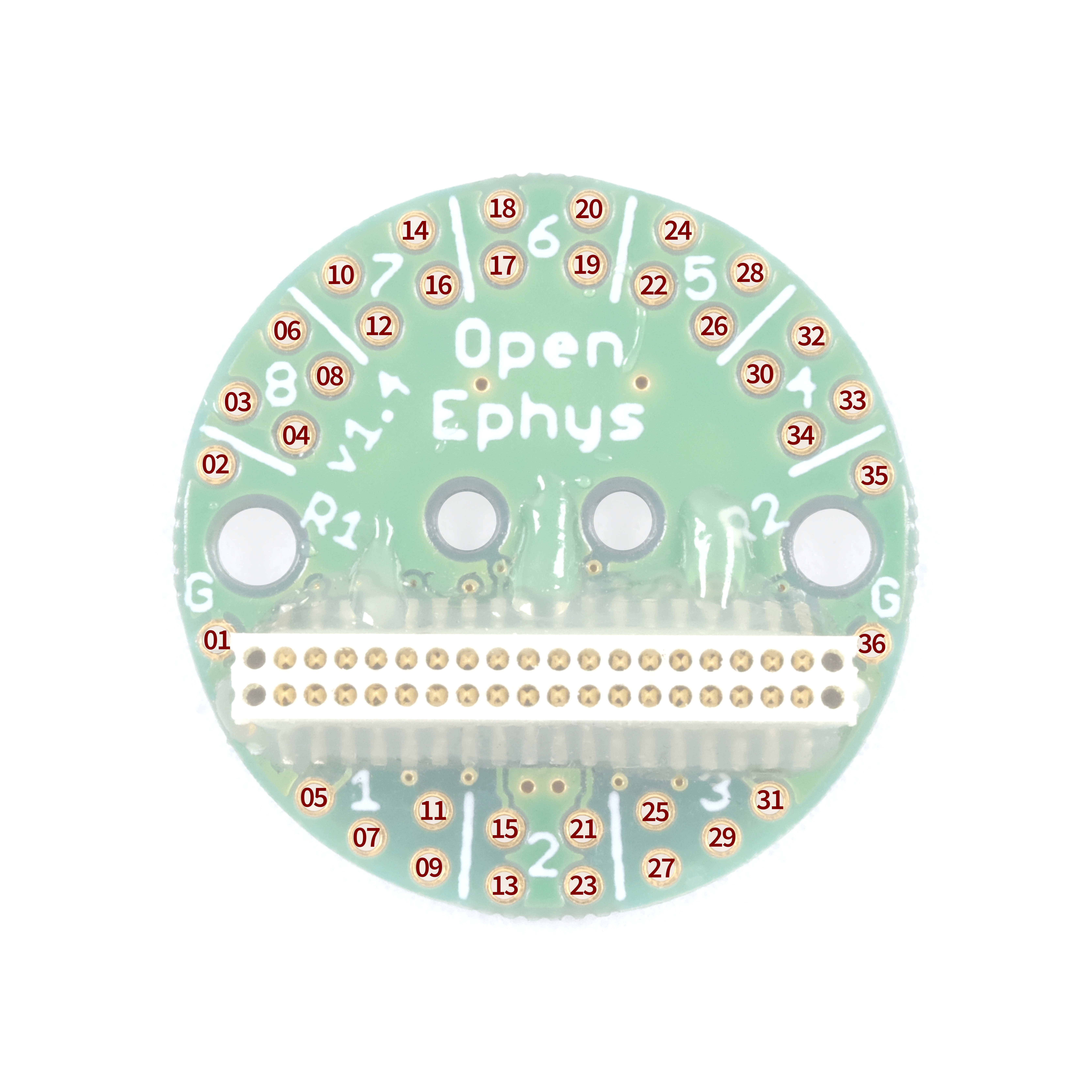

Connector pinout (vias)#

Compatible Headstages#

  • SPI Headstage 32ch (OEPS-6573)

  • SPI Headstage 32ch with 3D (OEPS-6576)

  • ONIX Headstage 32ch Stim/Record (OEPS-7746)
