ONIX Headstage Ephys 64ch#

../_images/OEPS-7741.jpg

OEPS-7741#

Acquisition System

ONIX

Dimensions

18.6mm diameter

Mass

1.5 g

Probe Connector

1x Hirose DF40C-70DP-0.4V(51)

Tether Connector

X.Fl

REF and GND

REF and GND connections tied together using the R29 0-ohm jumper resistor that can be removed

Source Repo

open-ephys/onix-headstage-64

Release

Revision 1.3B
../_images/OEPS-7741_channel_map.jpg

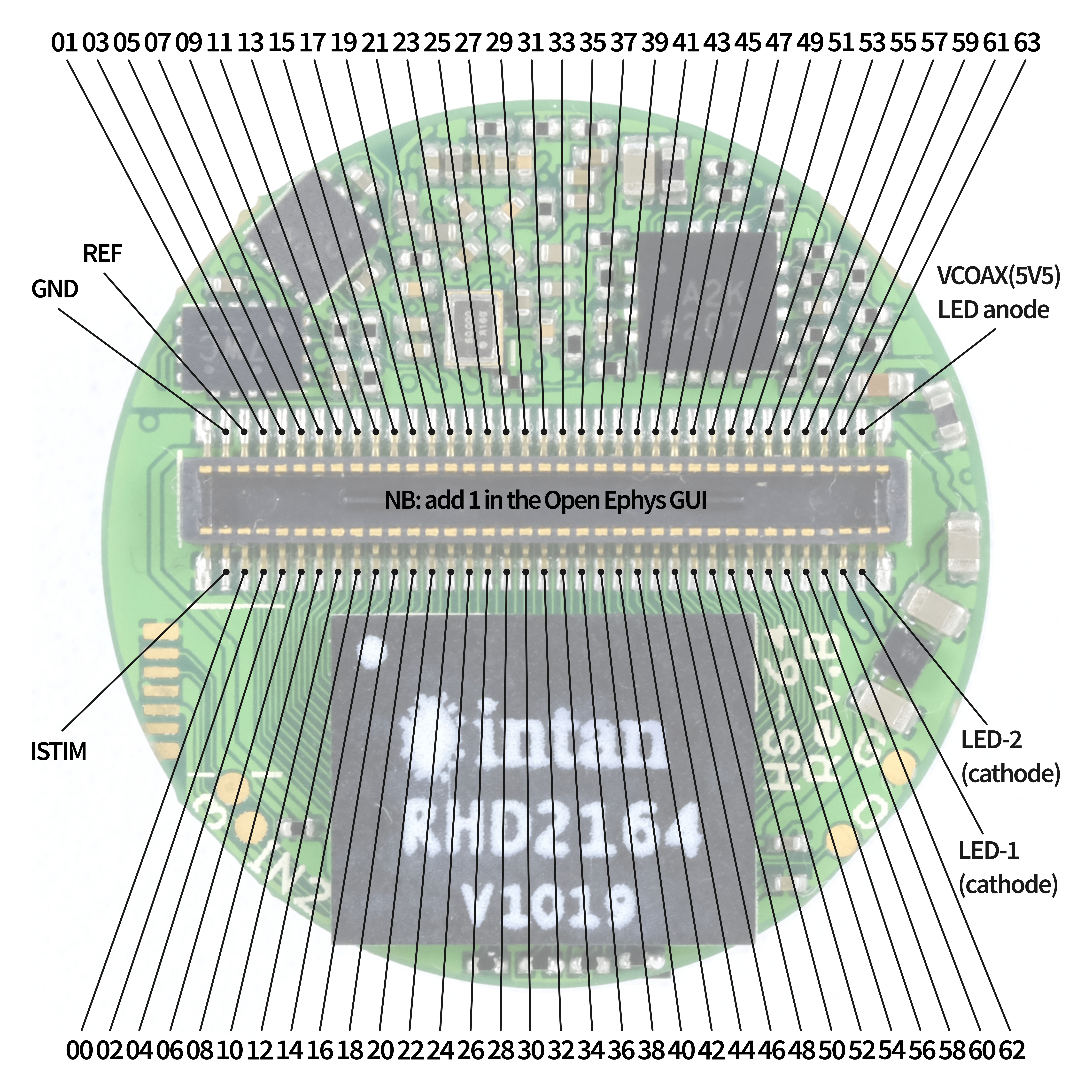

Channel map. For Open Ephys GUI channel numbers, add 1.#

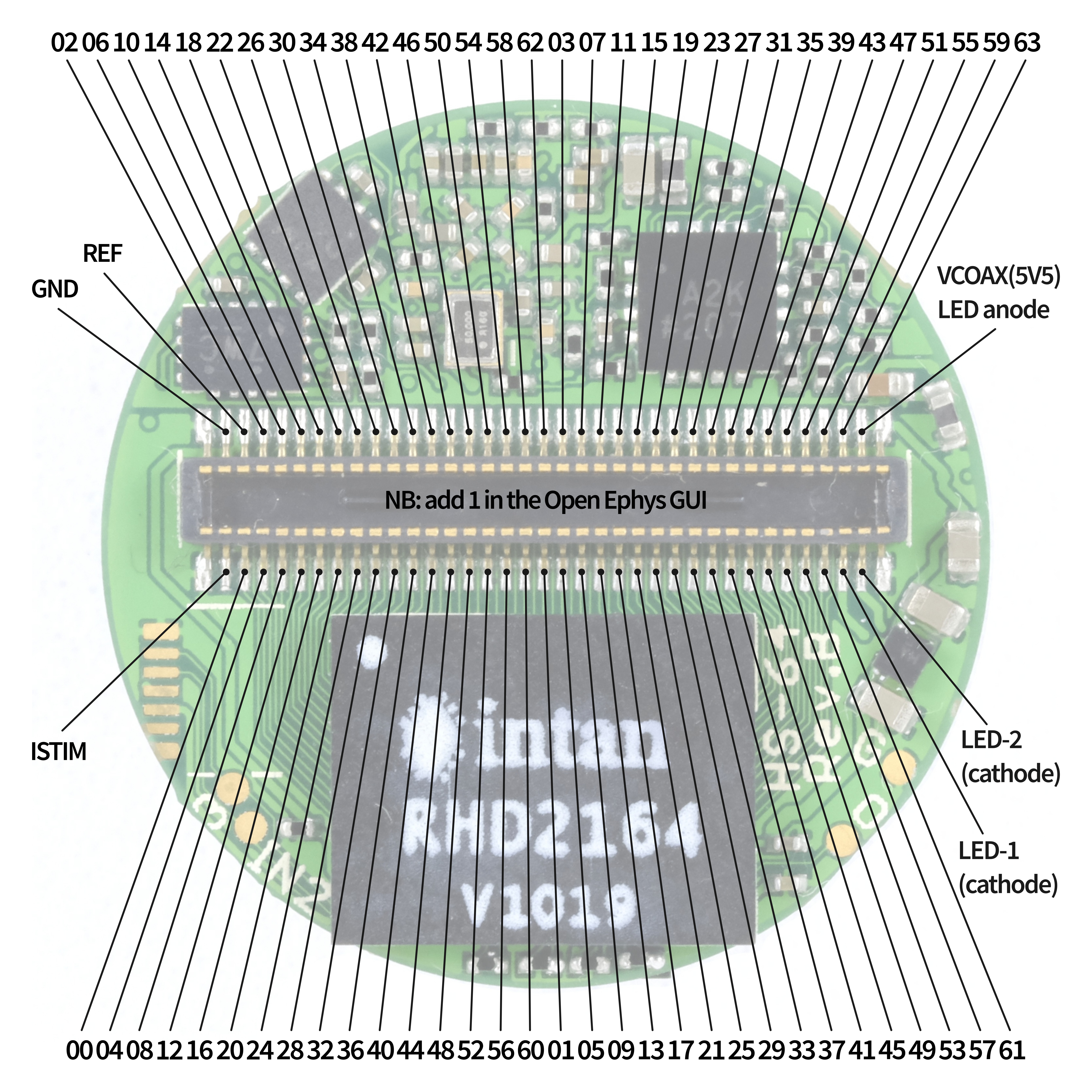

Channel map if your data were acquired using up to version 0.4.5 of the OpenEphys.Onix1 library
../_images/OEPS-7741_channel_map_v0.4.5.jpg

Channel map. For Open Ephys GUI channel number, add 1.#

../_images/OEPS-7741_axes.jpg

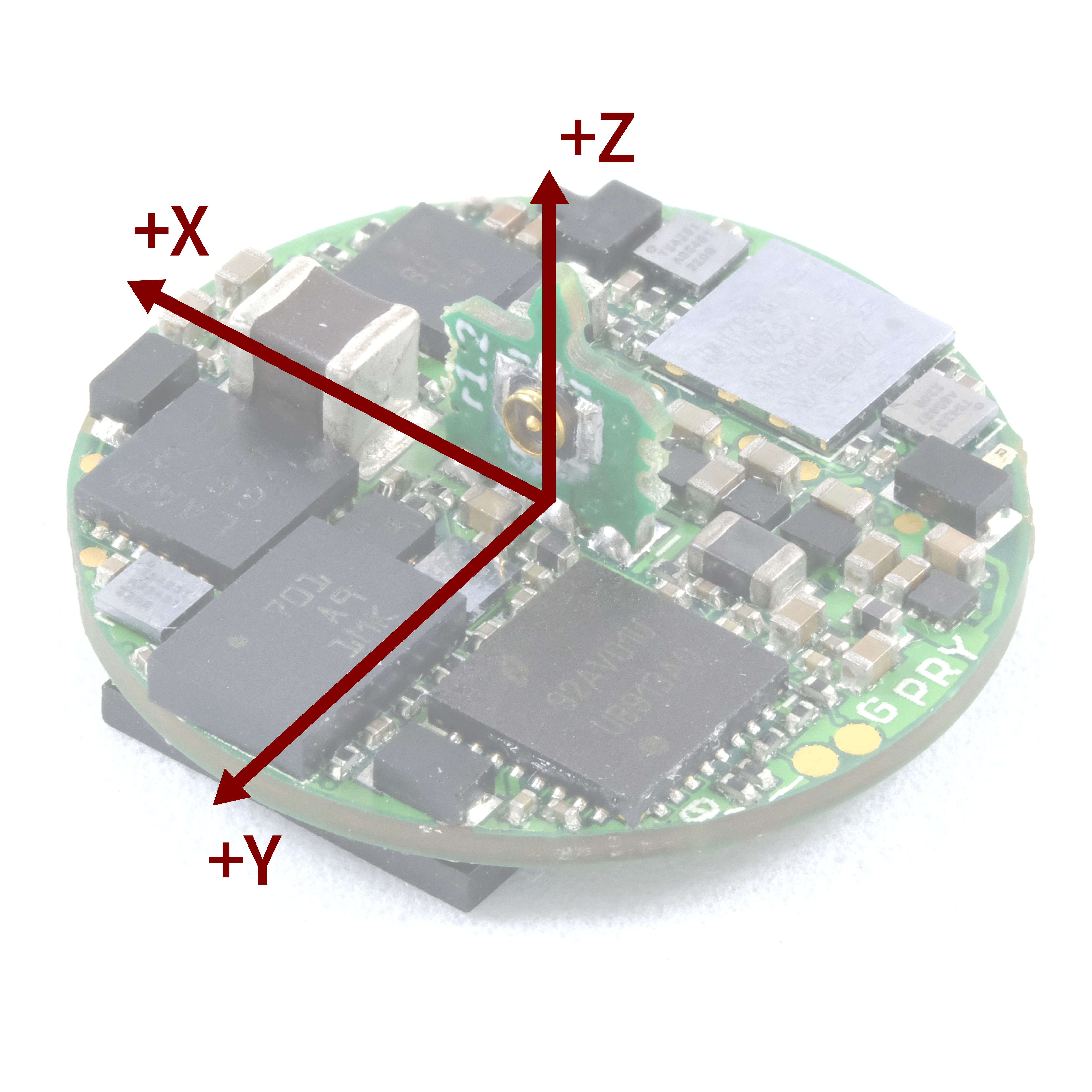

IMU axes#

Compatible EIBs#

  • ShuttleDrive 64-ch Hirose EIB (OEPS-6813)

ShuttleDrive 64-ch Hirose EIB#

../_images/OEPS-7741_OEPS-6813_mounting.jpg

EIB combination mounting#

../_images/OEPS-7741_OEPS-6813_channel_map.jpg

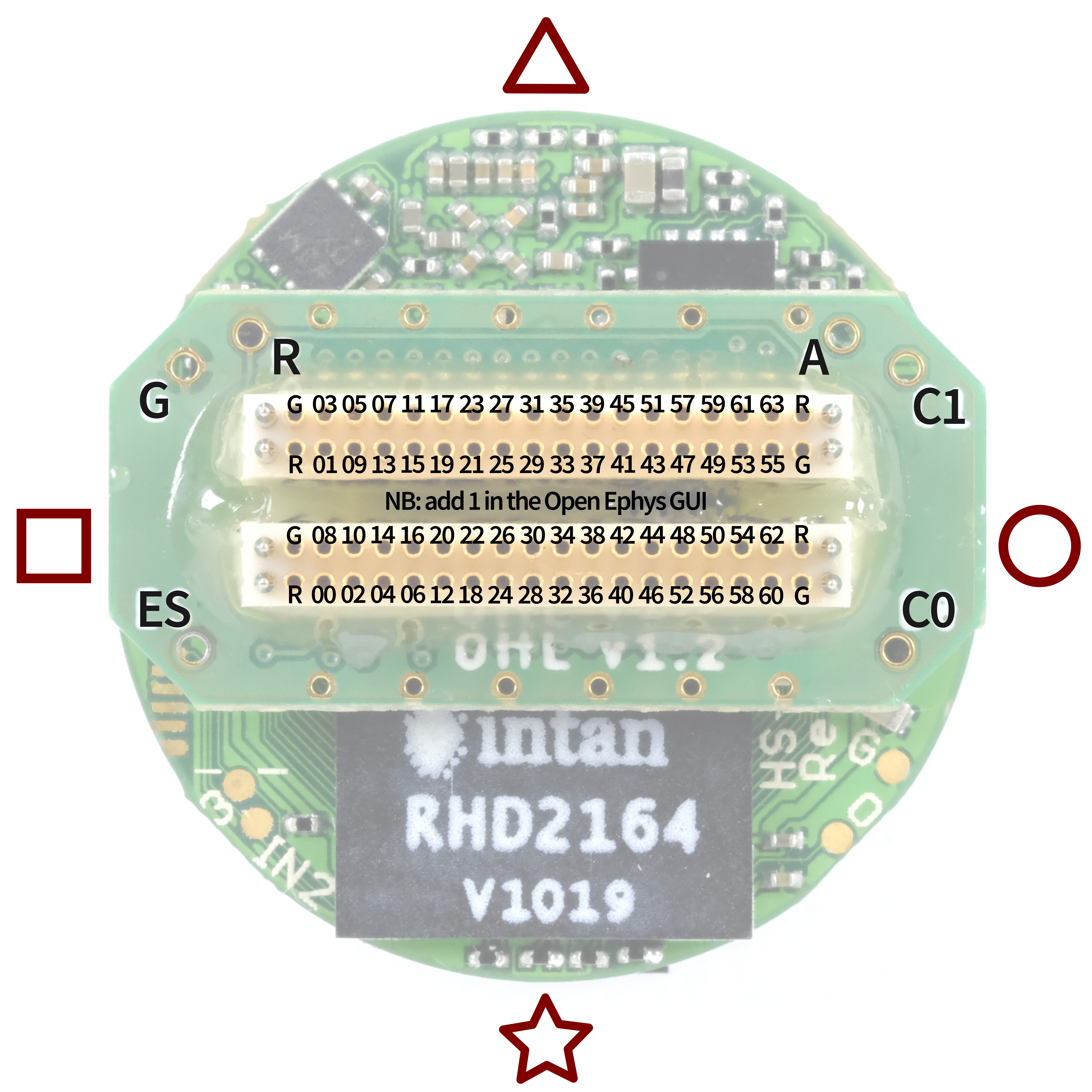

EIB combination channel map#

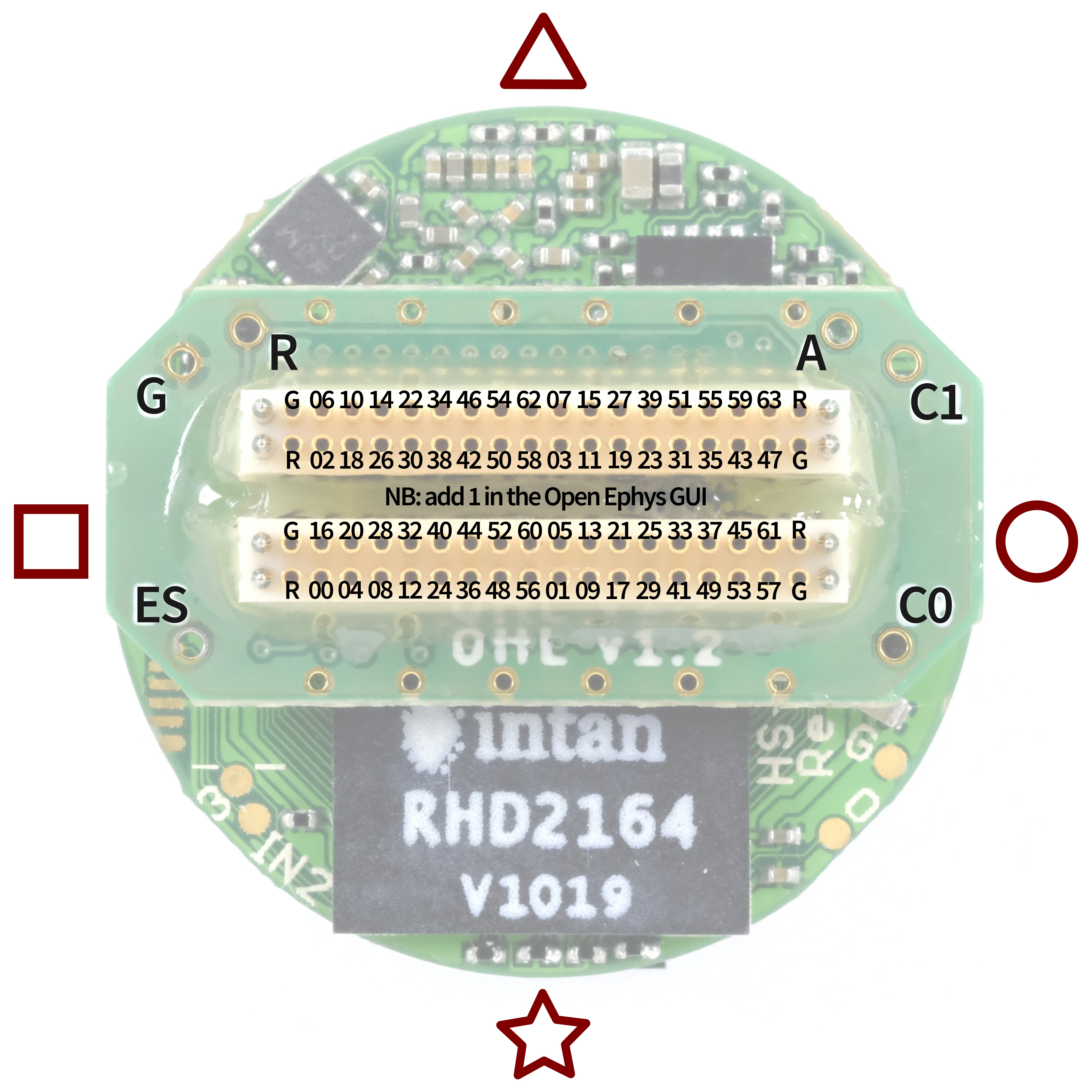

Channel map if your data were acquired using up to version 0.4.5 of the OpenEphys.Onix1 library
../_images/OEPS-7741_OEPS-6813_channel_map_v0.4.5.jpg

EIB combination channel map#

Compatible Adapters#

  • Adapter Hirose to Omnetics 64ch

Adapter Hirose to Omnetics 64ch#

../_images/OEPS-7741_OEPS-7200_mounting.jpg

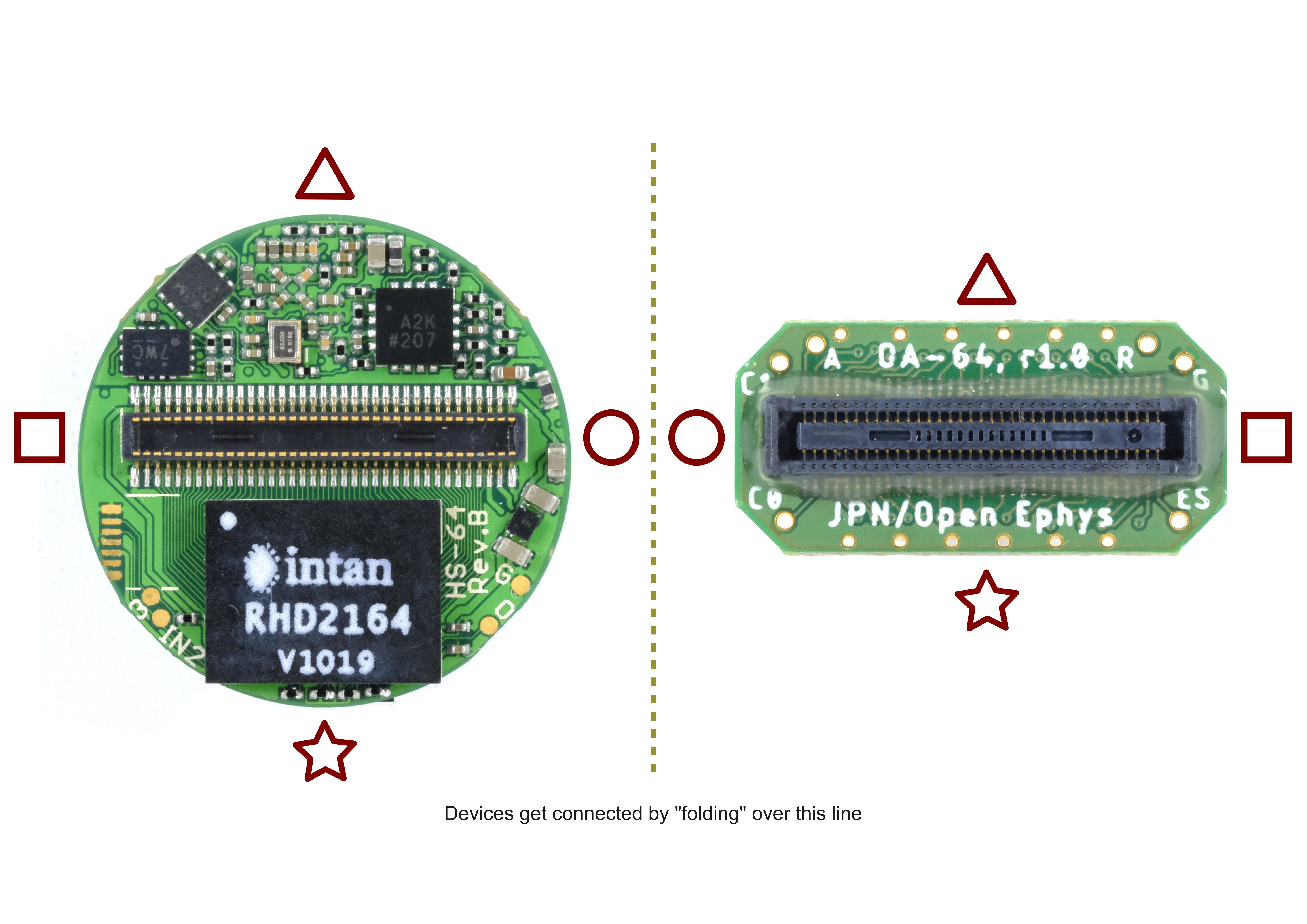

Adapter combination mounting#

../_images/OEPS-7741_OEPS-7200_channel_map.jpg

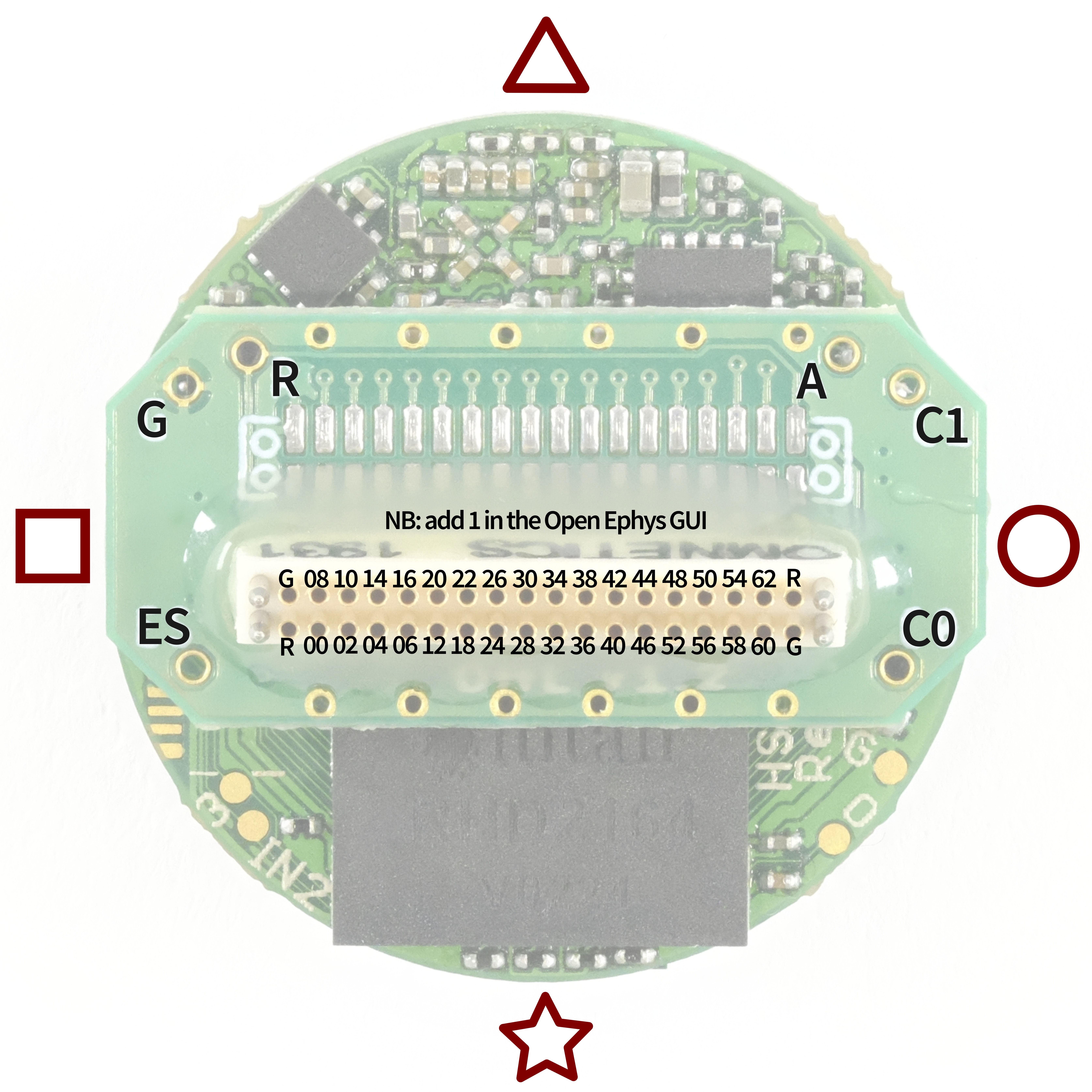

Adapter combination channel map#

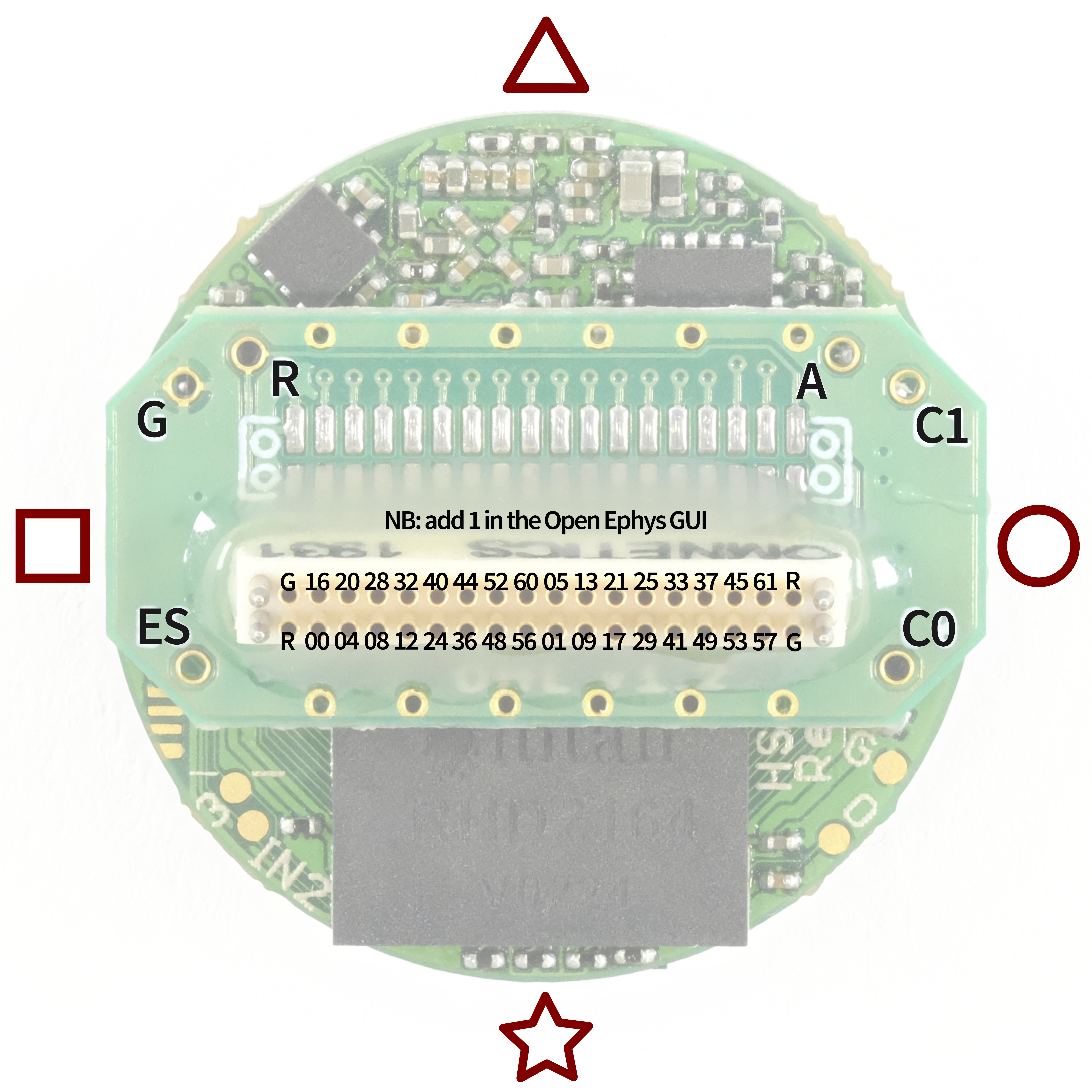

Channel map if your data were acquired using up to version 0.4.5 of the OpenEphys.Onix1 library
../_images/OEPS-7741_OEPS-7200_channel_map_v0.4.5.jpg

Adapter combination channel map#

Other combinations#

To construct other channel maps, navigate through the channel mapping table and connector pinout document.
