SPI Headstage 64ch Low Profile with 3D#

../_images/OEPS-6571.jpg

OEPS-6571#

Acquisition System

Acquisition board

Dimensions

18.8mm diameter

Mass

1.0 g

Probe Connector

1x Hirose DF40C-70DP-0.4V(51)

Tether Connector

12-pin SPI

REF and GND

REF and GND connections tied together using the R1 0-ohm jumper resistor that can be removed

Mounting Features

One 3.3 x 5.8 mm cutout

Source Repo

open-ephys/low-profile-3d-headstage-64ch

Release

Revision 1.1

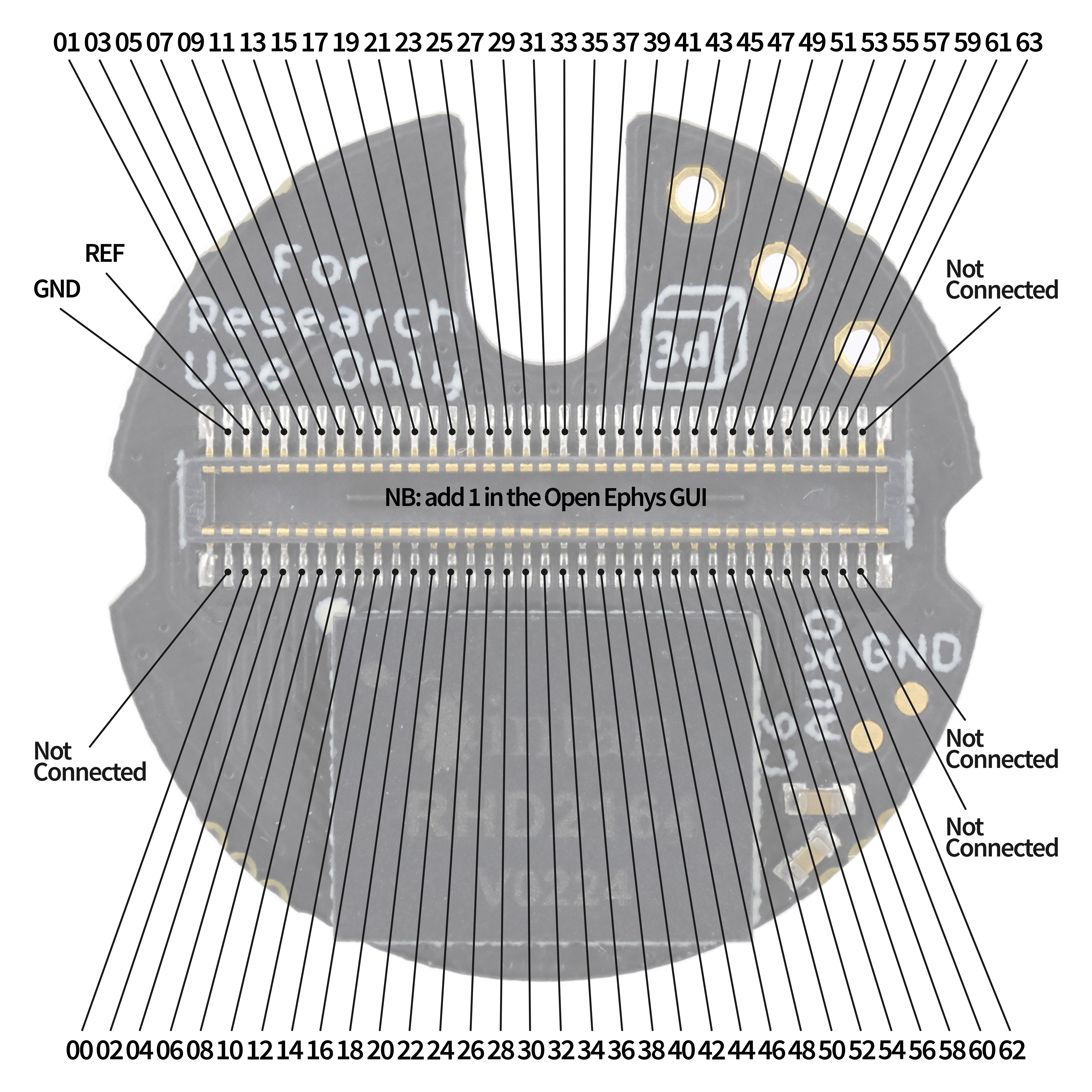

../_images/OEPS-6571_channel_map.jpg

Channel map. For Open Ephys GUI channel numbers, add 1.#

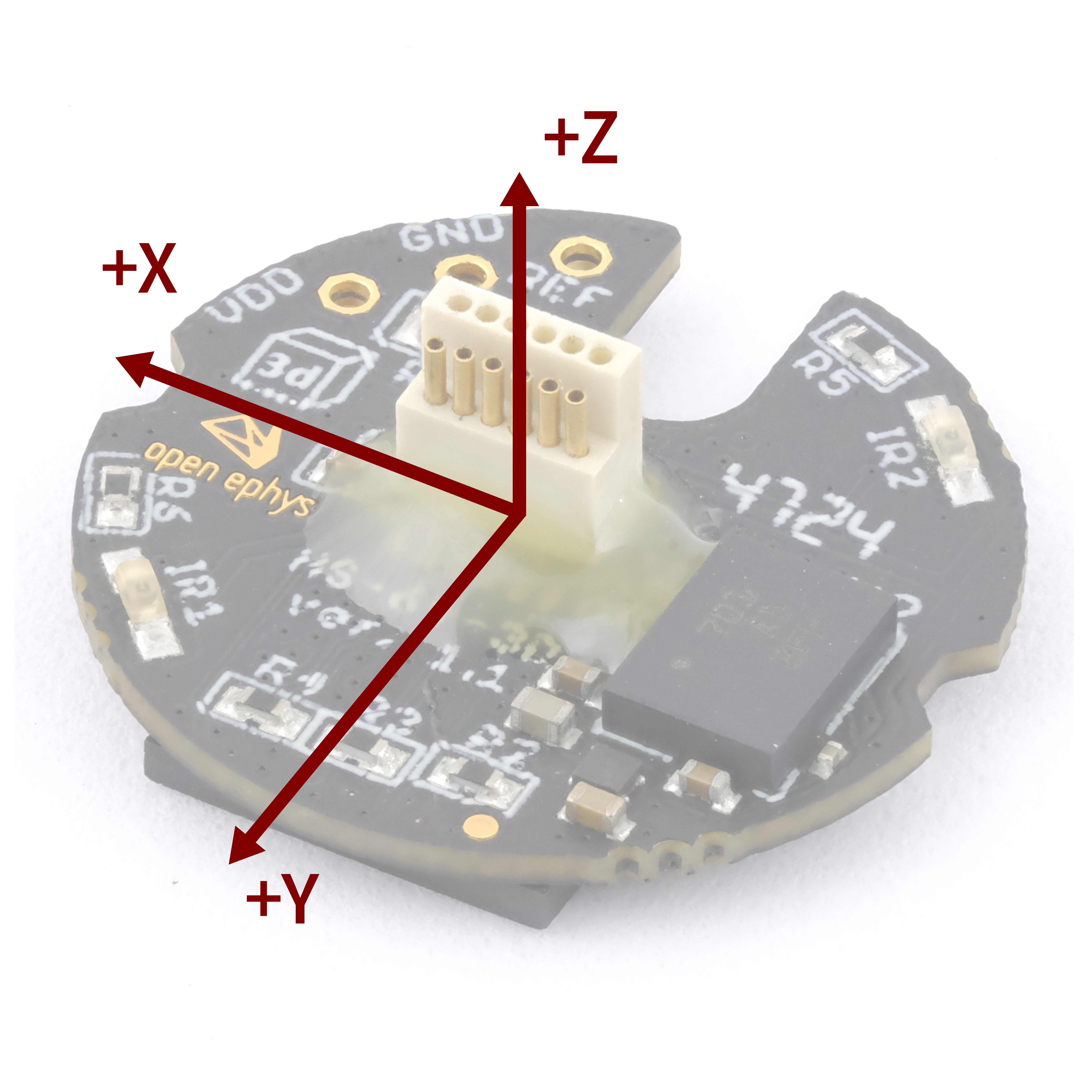

../_images/OEPS-6571_axes.jpg

IMU axes#

Compatible EIBs#

  • ShuttleDrive 64-ch Hirose EIB (OEPS-6813)

ShuttleDrive 64-ch Hirose EIB#

../_images/OEPS-6571_OEPS-6813_mounting.jpg

EIB combination mounting#

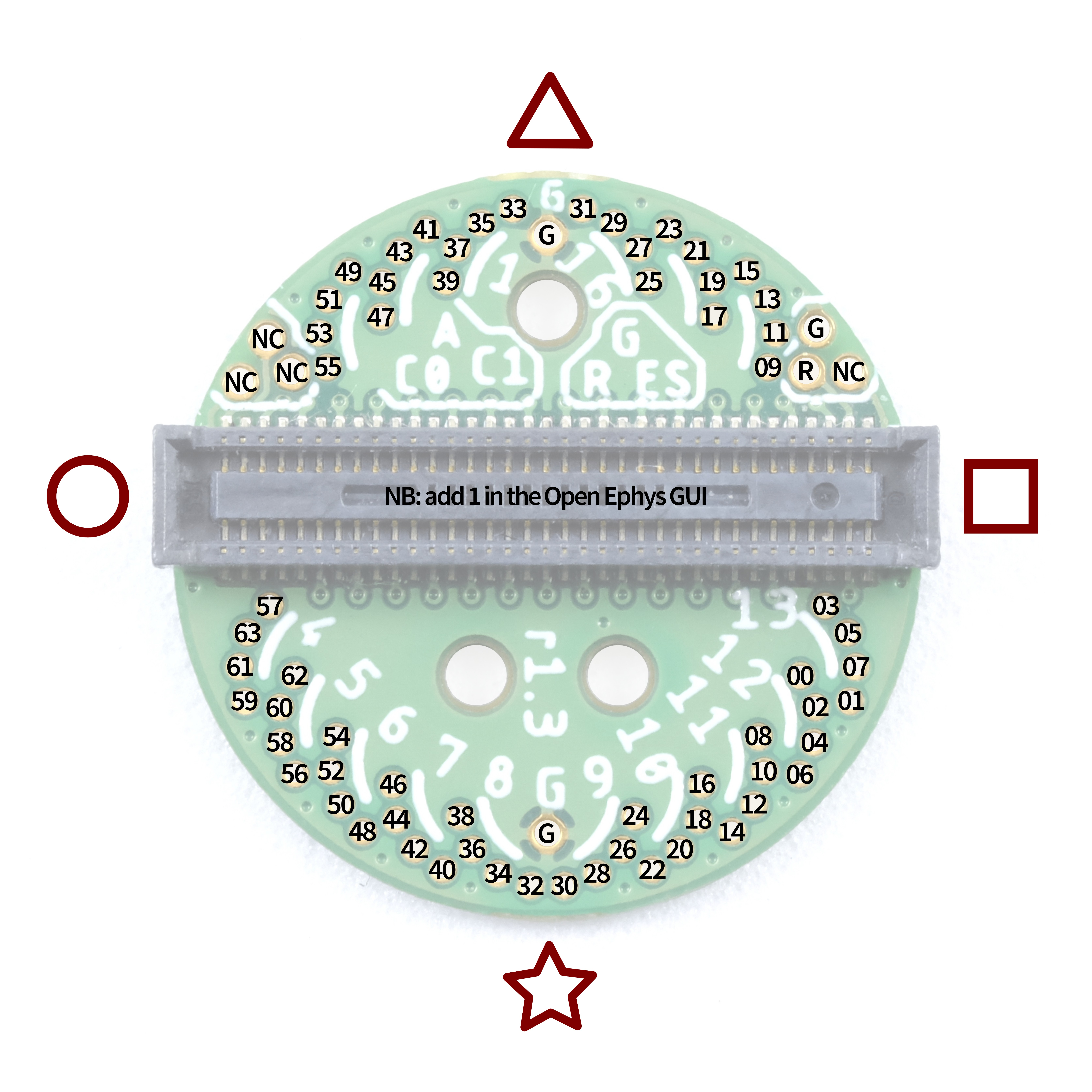

../_images/OEPS-6571_OEPS-6813_channel_map.jpg

EIB combination channel map#

Compatible Adapters#

  • Adapter Hirose to Omnetics 64ch

Adapter Hirose to Omnetics 64ch#

../_images/OEPS-6571_OEPS-7200_mounting.jpg

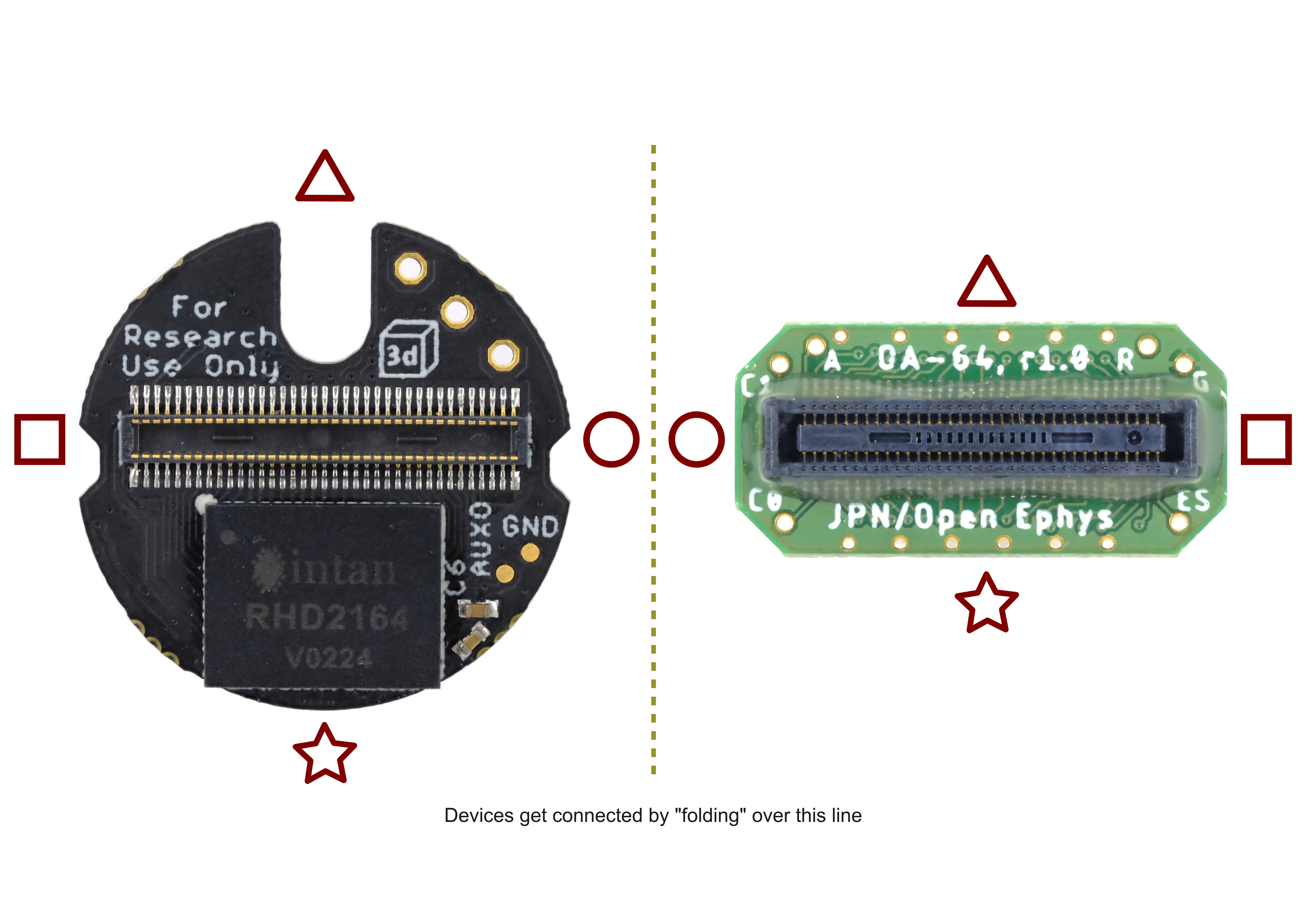

Adapter combination mounting#

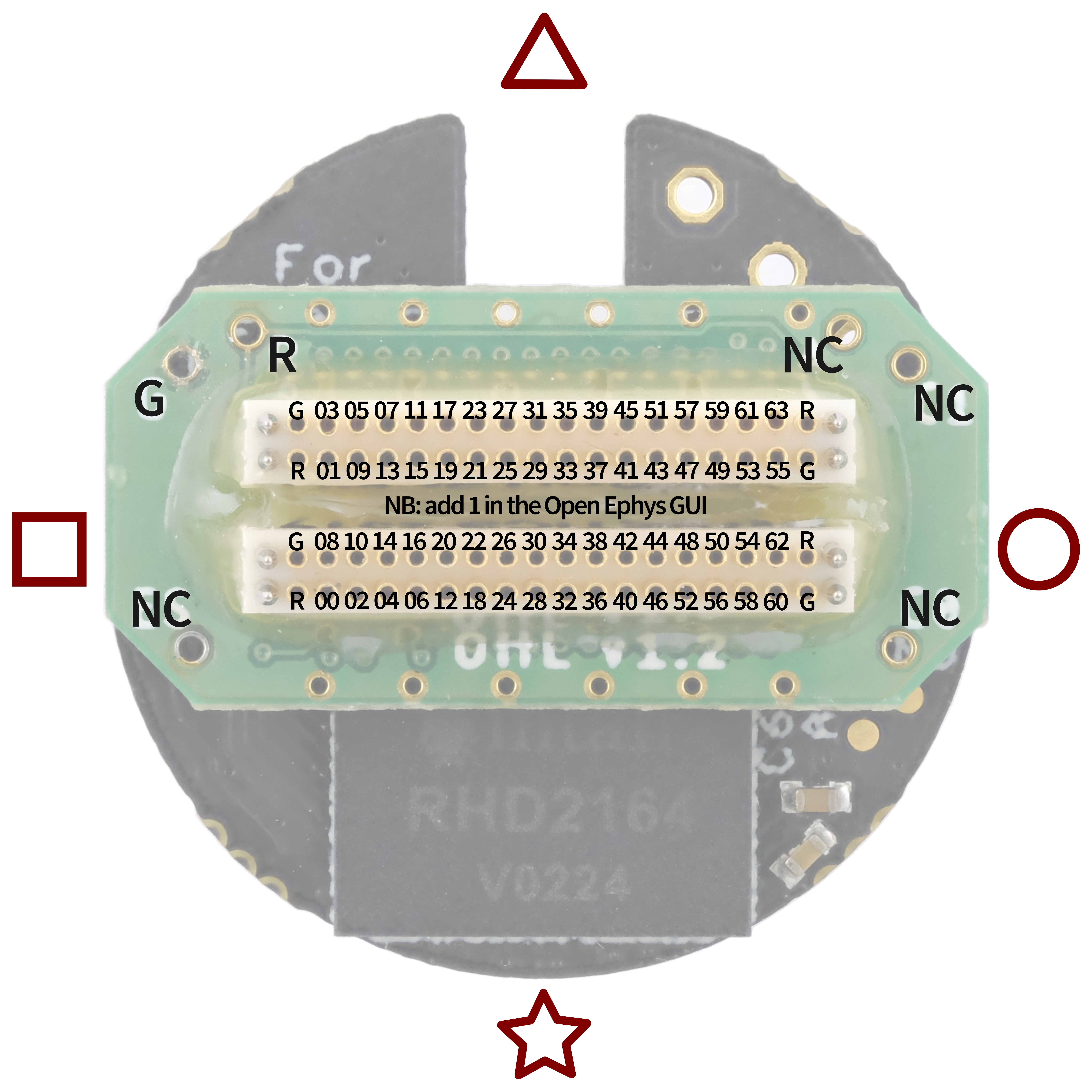

../_images/OEPS-6571_OEPS-7200_channel_map.jpg

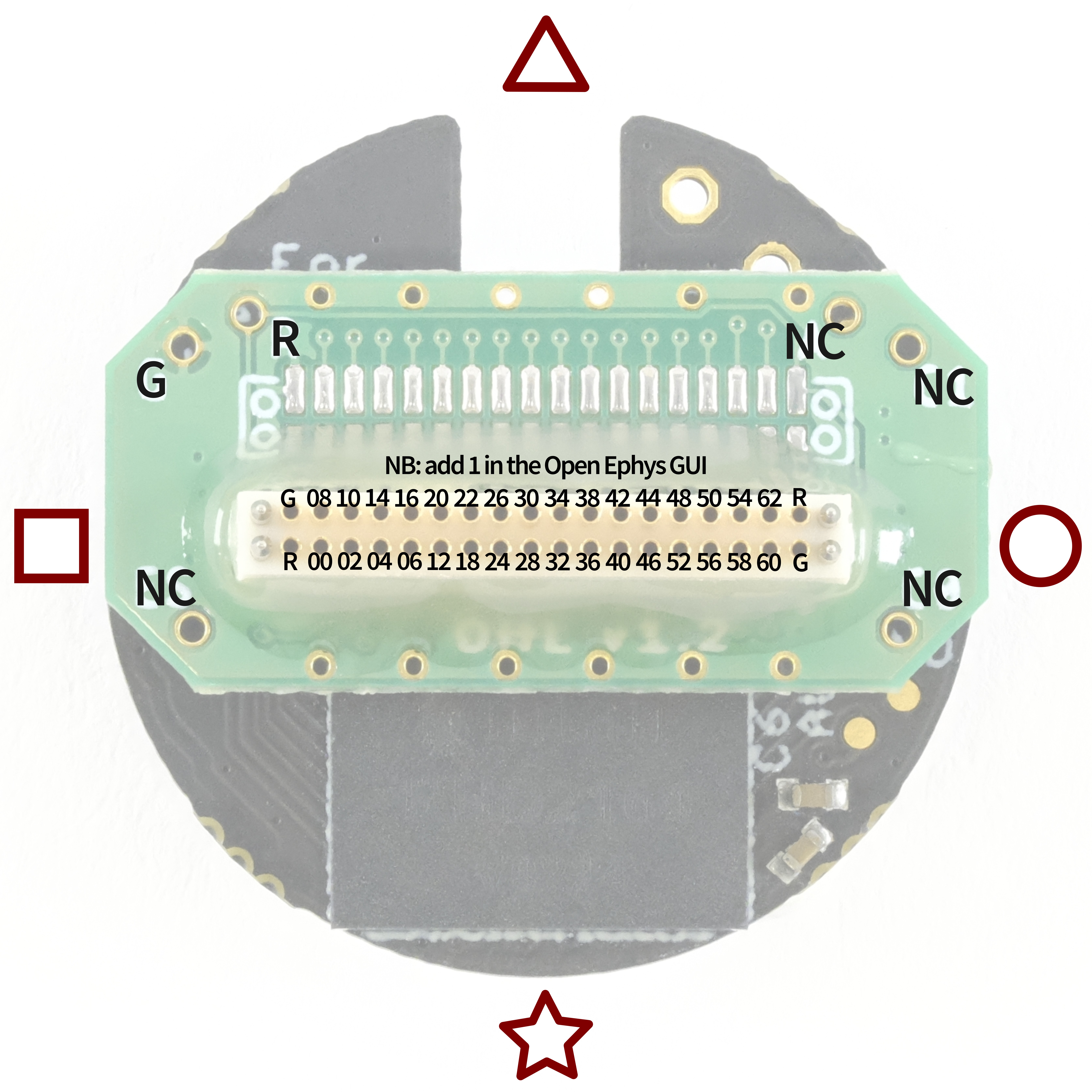

Adapter combination channel map#

Other combinations#

To construct other channel maps, navigate through the channel mapping table and connector pinout document.
