ONIX Headstage 32ch Stim/Record#

../_images/OEPS-7746.jpg

OEPS-7746#

Acquisition System

ONIX

Dimensions

15.2 x 25.5 mm

Mass

1.62 g

Probe Connector

1x Omnetics A79025: 36 pins, 4 guide posts

Tether Connector

U.Fl

REF and GND

REF and GND connections tied together using the R18 0-ohm jumper resistor that can be removed

Source Repo

open-ephys/onix-headstage-rhs2116

Revision

C

../_images/OEPS-7746_channel_map.jpg

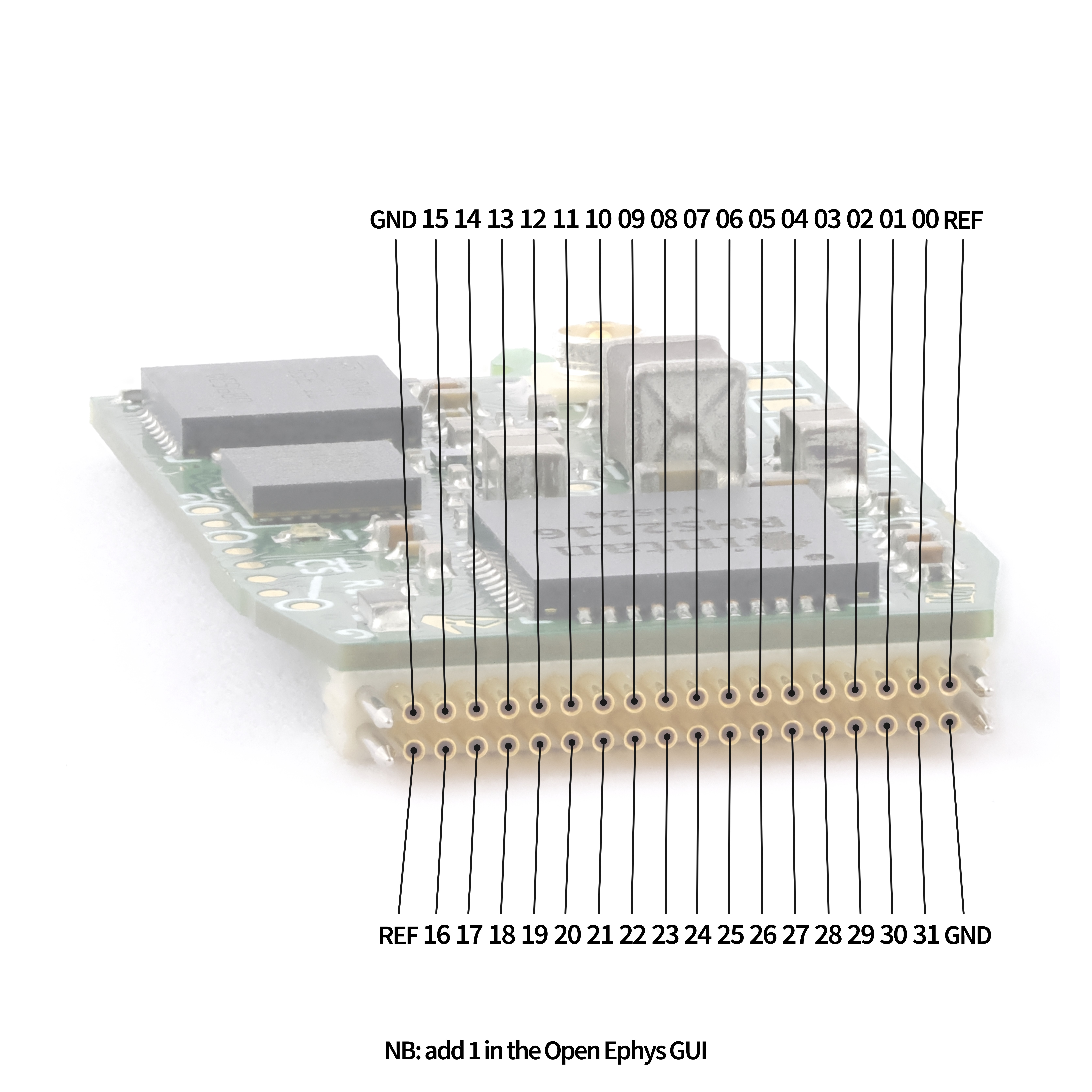

Channel map#

Compatible EIBs#

  • ShuttleDrive 32-ch Hirose EIB (OEPS-6809)

ShuttleDrive 32-ch Hirose EIB#

../_images/OEPS-7746_OEPS-6809_mounting.jpg

EIB combination mounting#

../_images/OEPS-7746_OEPS-6809_channel_map.jpg

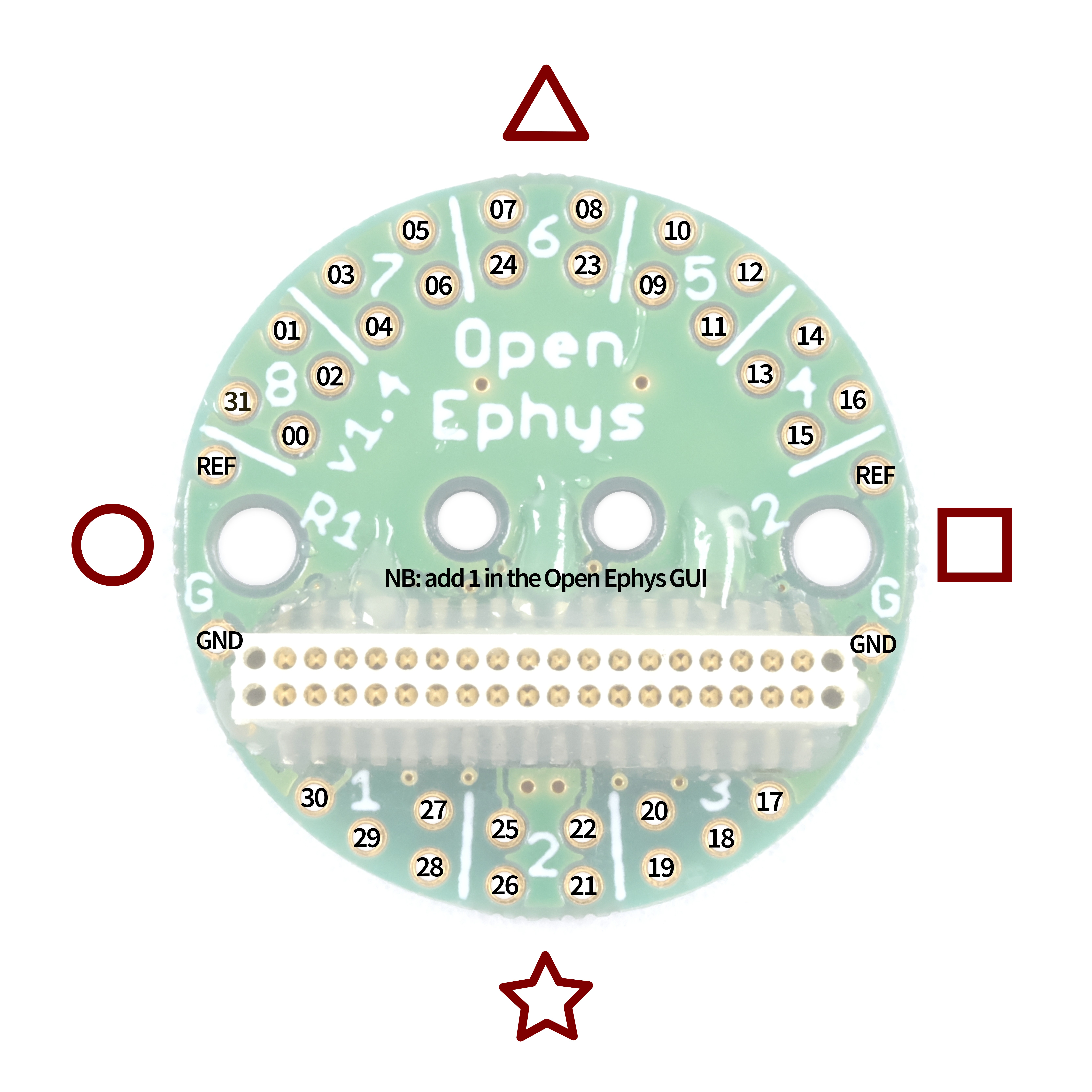

EIB combination channel map#

Other combinations#

To construct other channel maps, navigate through the channel mapping table and connector pinout document.
