SPI Headstage 32ch with 3D#

../_images/OEPS-6576.jpg

OEPS-6576#

Acquisition System

Acquisition board

Dimensions

15.1 x 26 mm

Mass

1.1 g

Probe Connector

1x Omnetics A79025: 36 pins, 4 guide posts

Tether Connector

12-pin SPI

REF and GND

REF and GND connections tied together using the R0 0-ohm jumper resistor that can be removed

Source Repo

open-ephys/vertical-profile-spi-headstage-32ch

Revision

1.1

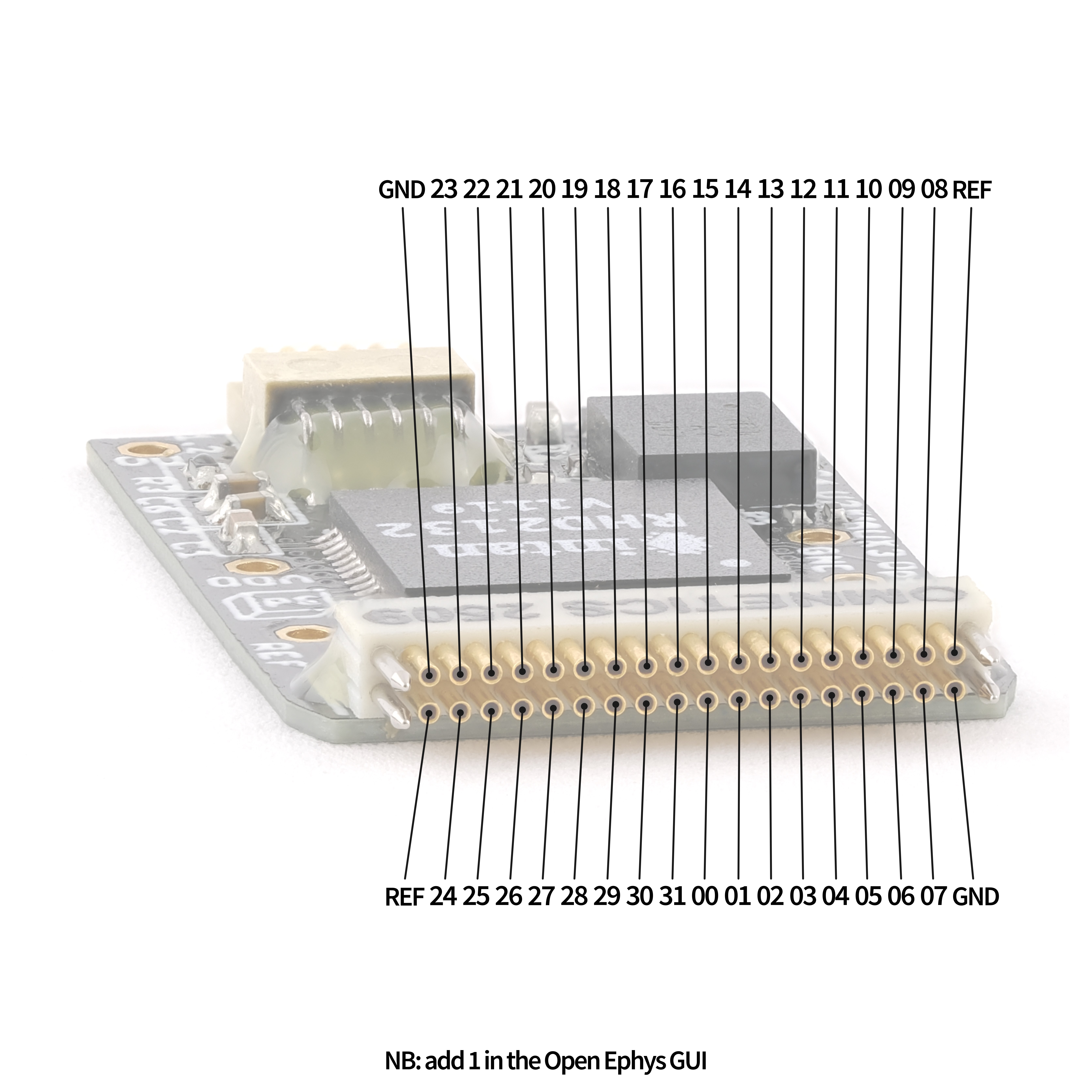

../_images/OEPS-6576_channel_map.jpg

Channel map#

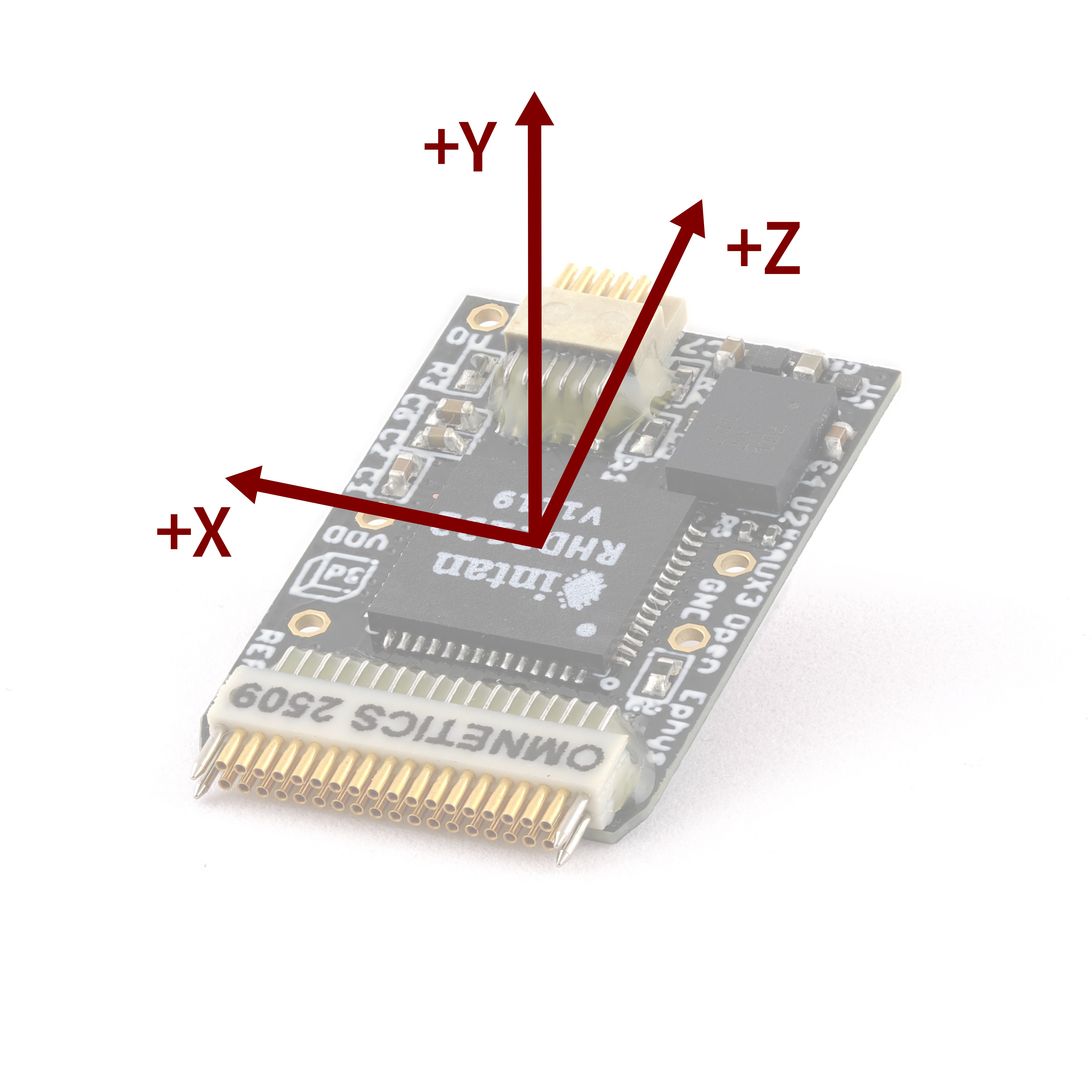

../_images/OEPS-6576_axes.jpg

Accelerometer axes#

Compatible EIBs#

  • ShuttleDrive 32-ch Hirose EIB (OEPS-6809)

  • FlexDrive 64ch Omnetics EIB (OEPS-6805)

ShuttleDrive 32-ch Hirose EIB#

../_images/OEPS-6576_OEPS-6809_mounting.jpg

EIB combination mounting#

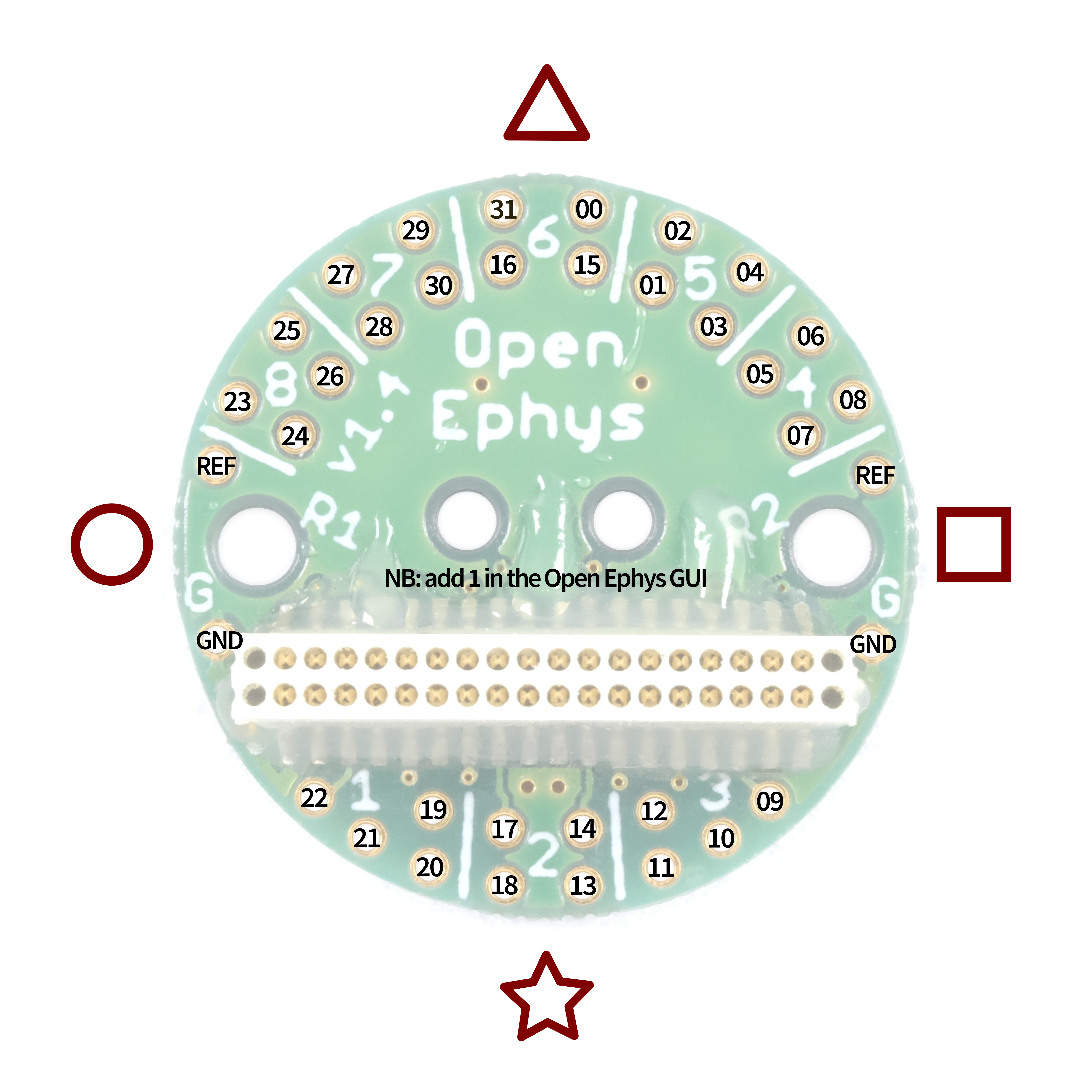

../_images/OEPS-6576_OEPS-6809_channel_map.jpg

EIB combination channel map#

FlexDrive 64ch Omnetics EIB#

../_images/OEPS-6576_OEPS-6805_mounting.jpg

EIB combination mounting#

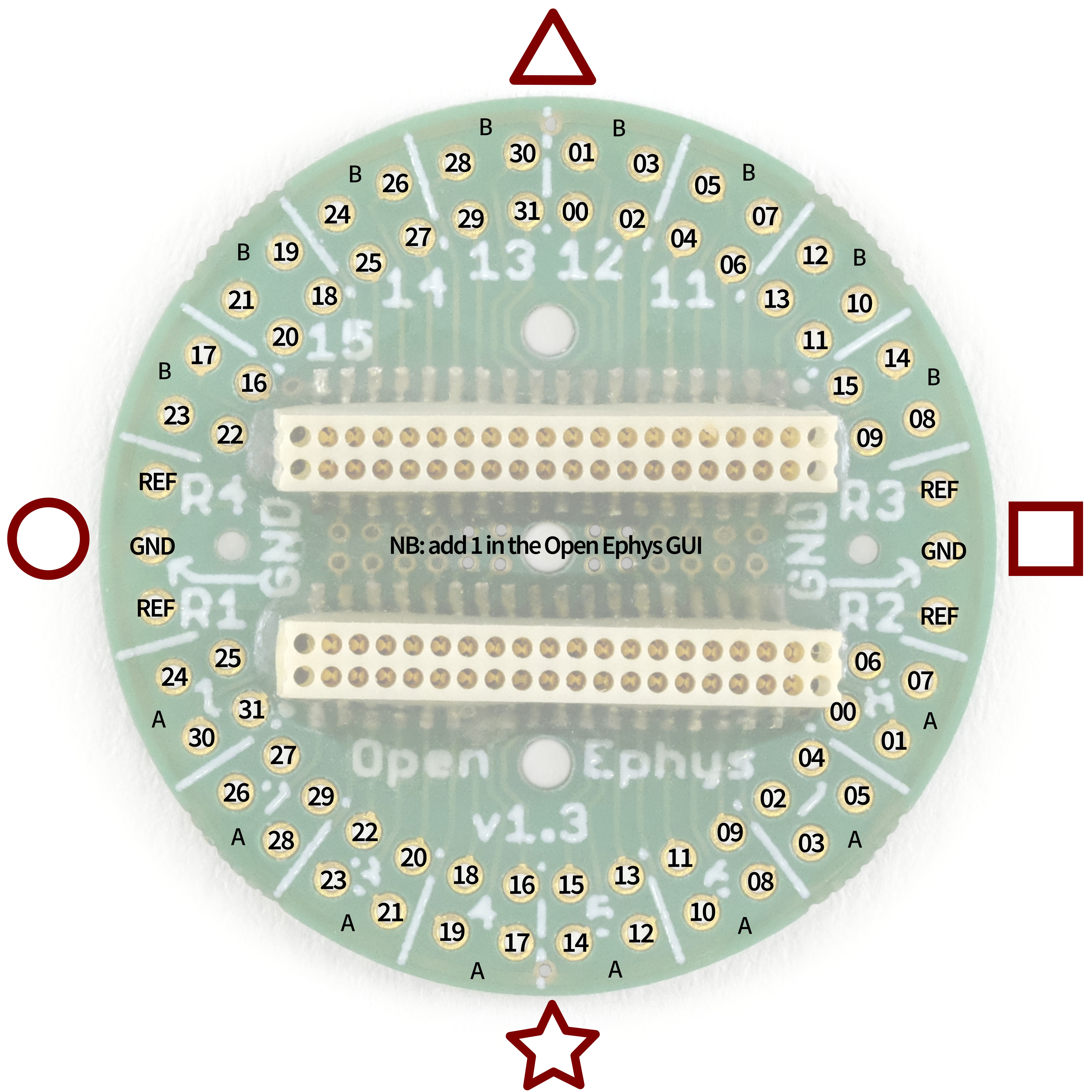

../_images/OEPS-6576_OEPS-6805_channel_map.jpg

EIB combination channel map#

Other combinations#

To construct other channel maps, navigate through the channel mapping table and connector pinout document.
