SPI Headstage 16ch bipolar#

../_images/OEPS-6574_main.jpg

OEPS-6574#

Acquisition System

Acquisition board

Dimensions

15.1 x 26 mm

Weight

1.1 g

Probe connector

1x Omnetics A79025: 36 pins, 4 guide posts

Tether connector

12-pin SPI

REF and GND

REF and GND connections tied together using the R0 0-ohm jumper resistor that can be removed

Source Files

open-ephys/vertical-profile-spi-headstage-32ch

Release

Revision 1.1
../_images/OEPS-6574_channel_map.jpg

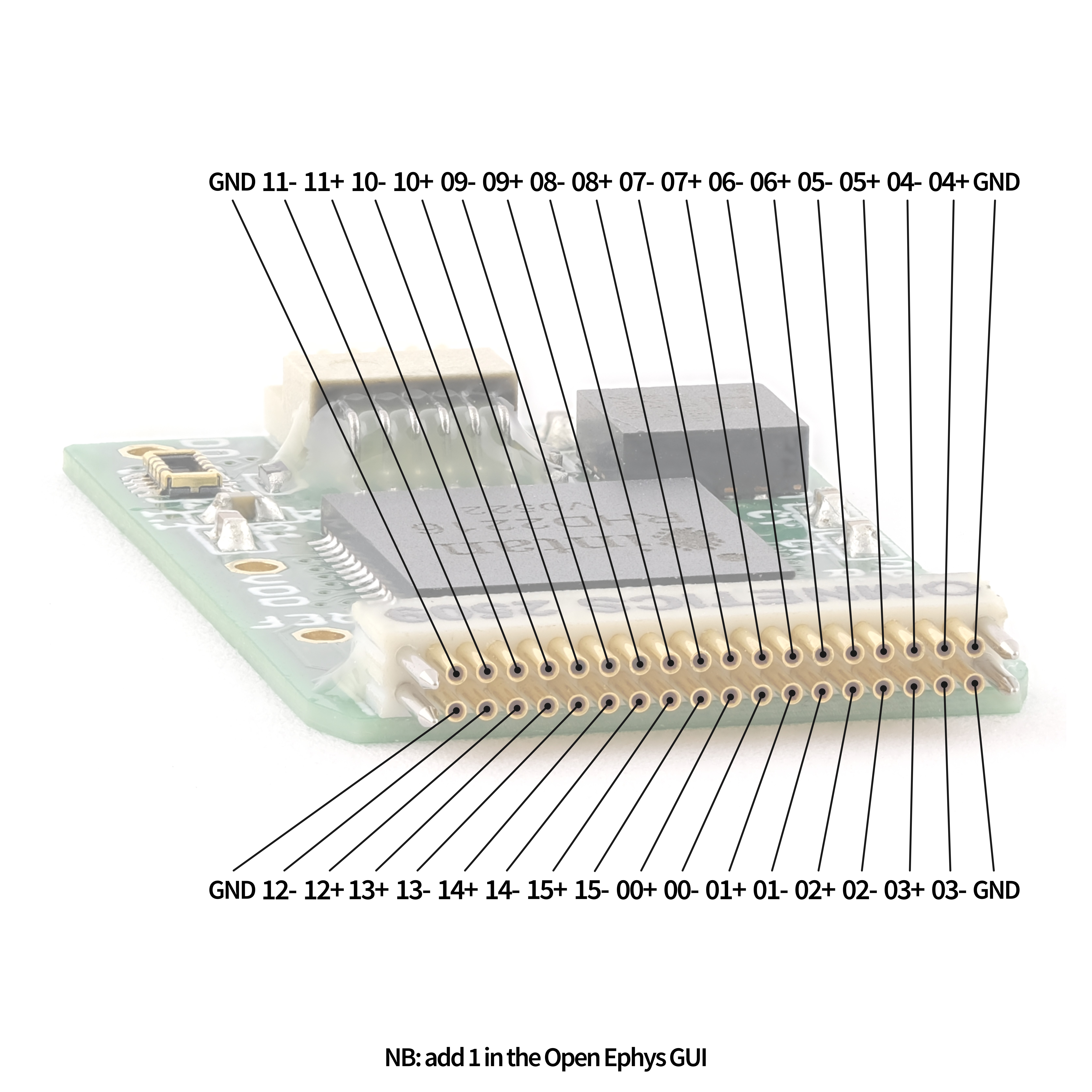

Channel map. For Open Ephys GUI channel numbers, add 1.#

../_images/OEPS-6574_axes.jpg

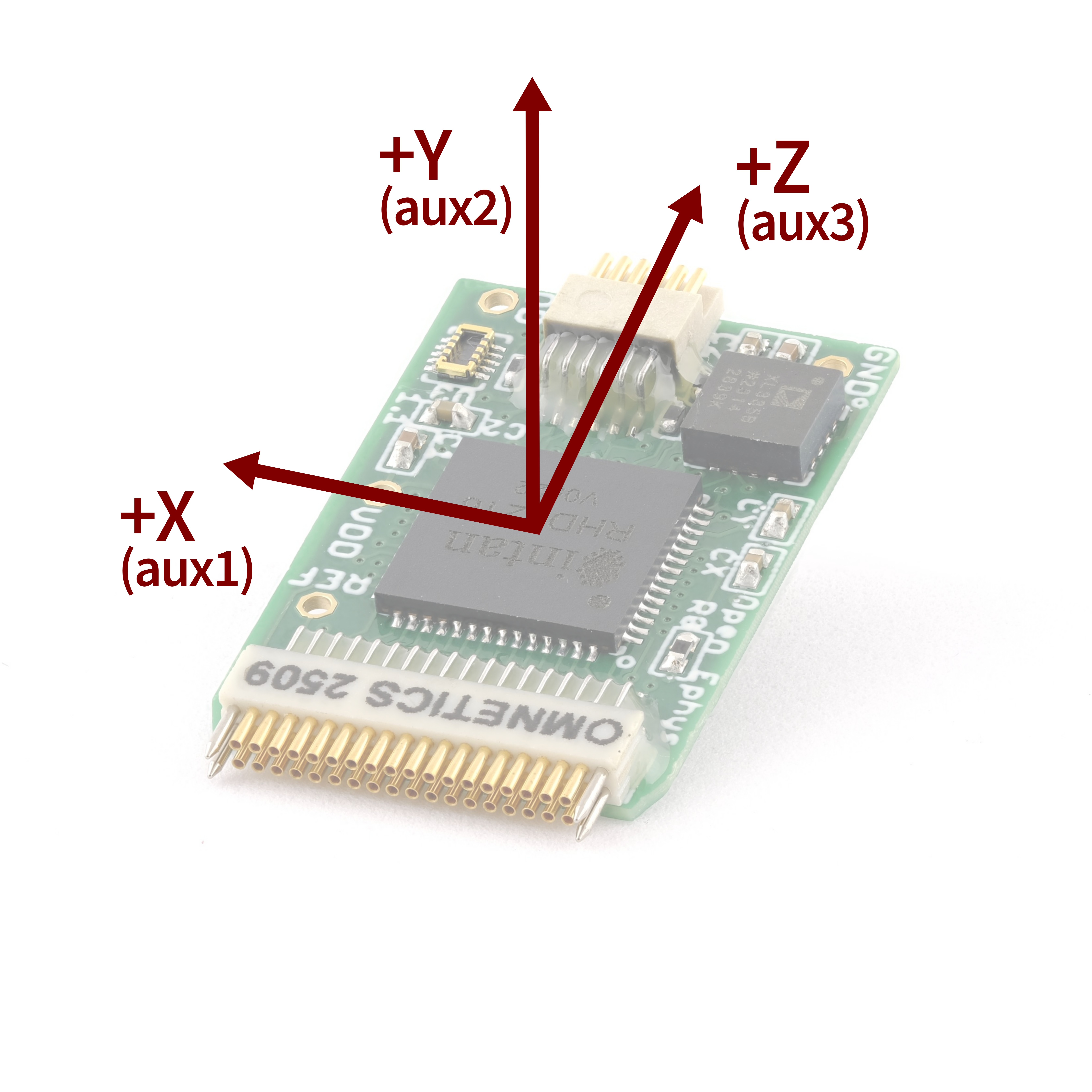

OEPS-6574 Accelerometer axes#

Other combinations#

To construct other channel maps, navigate through the channel mapping table and connector pinout document.
