ONIX Headstage Neuropixels 1.0e#

../_images/OEPS-7743_main.jpg

OEPS-7743#

Acquisition System

ONIX

Dimensions

12.5 x 16 mm

Weight

0.68 g

Probe connector

1x ZIF connector

Tether connector

X.Fl

REF and GND

REF and GND connections are not tied together

Structural Opening

Two M1.4 (1.4 mm in diameter) mounting holes

Source Files

open-ephys/onix-headstage-neuropix1e

Release

Revision A
../_images/OEPS-7743_axes.jpg

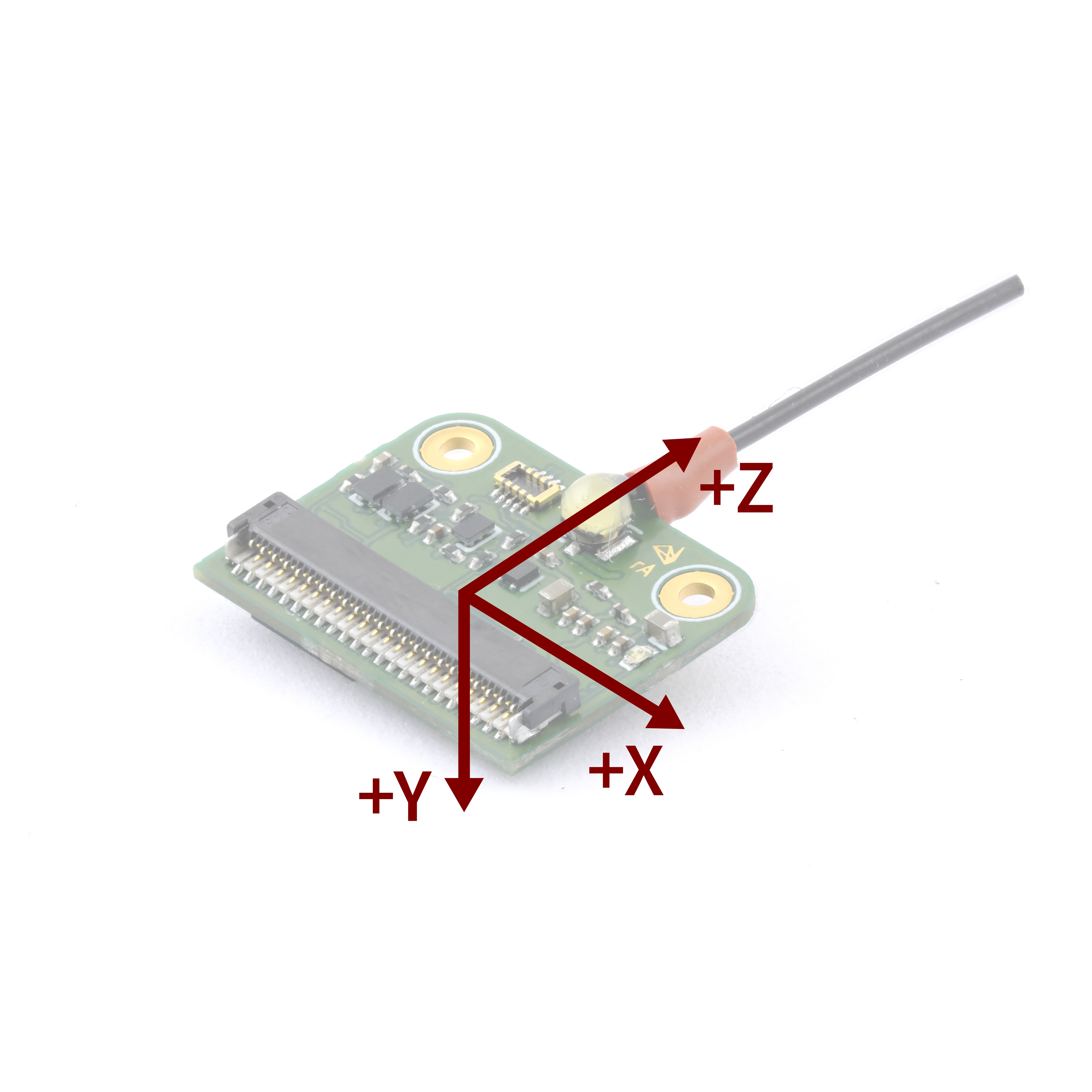

IMU axes#

Other combinations#

To construct other channel maps, navigate through the channel mapping table and connector pinout document.
