ONIX Headstage Neuropixels 2.0e#

../_images/OEPS-7745_main.jpg

OEPS-7745#

Acquisition System

ONIX

Dimensions

10.2 x 14.2 mm

Weight

0.64 g

Probe connector

2x ZIF connector

Tether connector

X.Fl

REF and GND

REF and GND connections are not tied together

Structural Opening

Two 1.8 x 0.8 mm mounting holes

Source Files

open-ephys/onix-headstage-neuropix2e

Release

Revision B

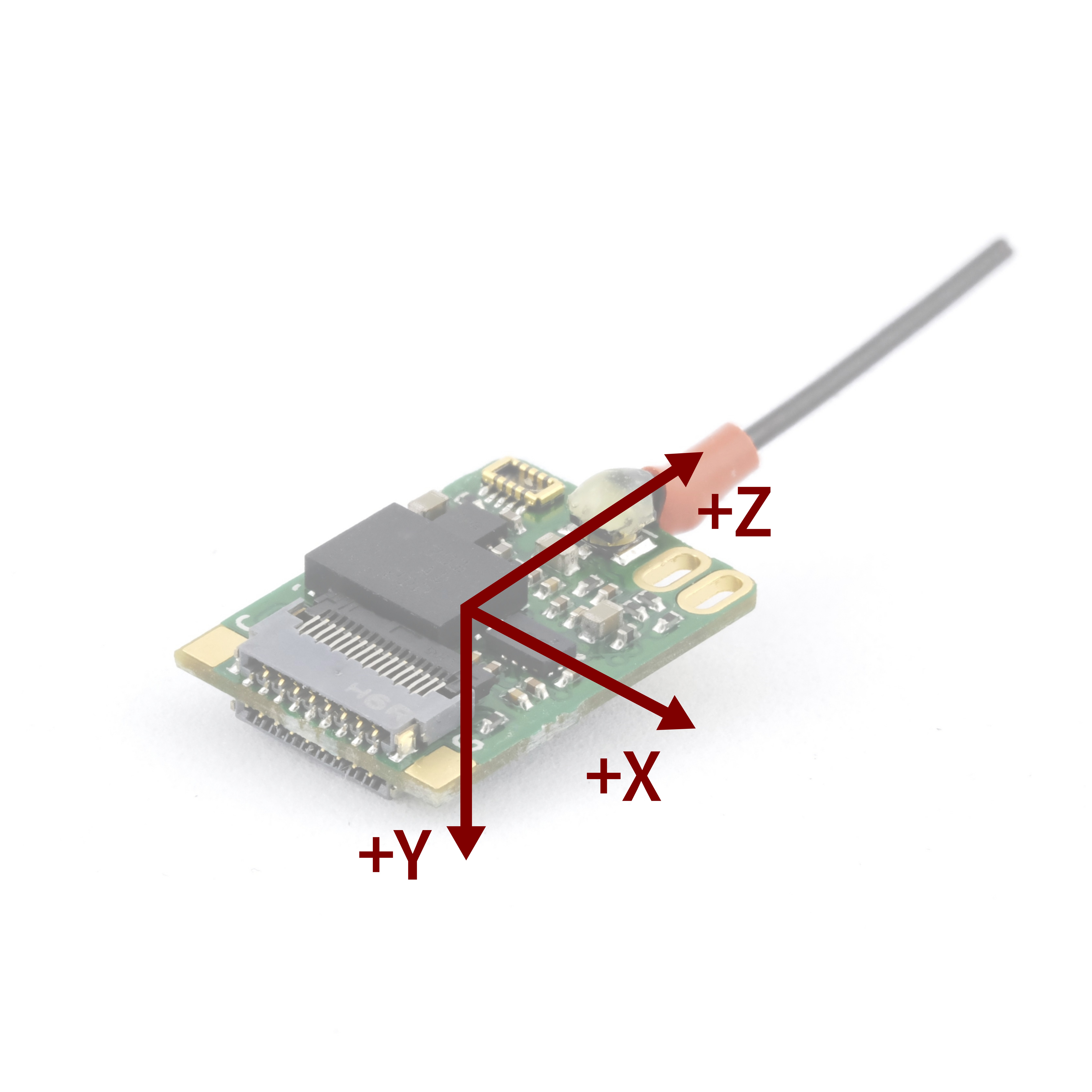

../_images/OEPS-7745_axes.jpg

IMU axes#

Other combinations#

To construct other channel maps, navigate through the channel mapping table and connector pinout document.
